Dental Series · Photopolymer Resin
Long-Term Preservation ModelResin

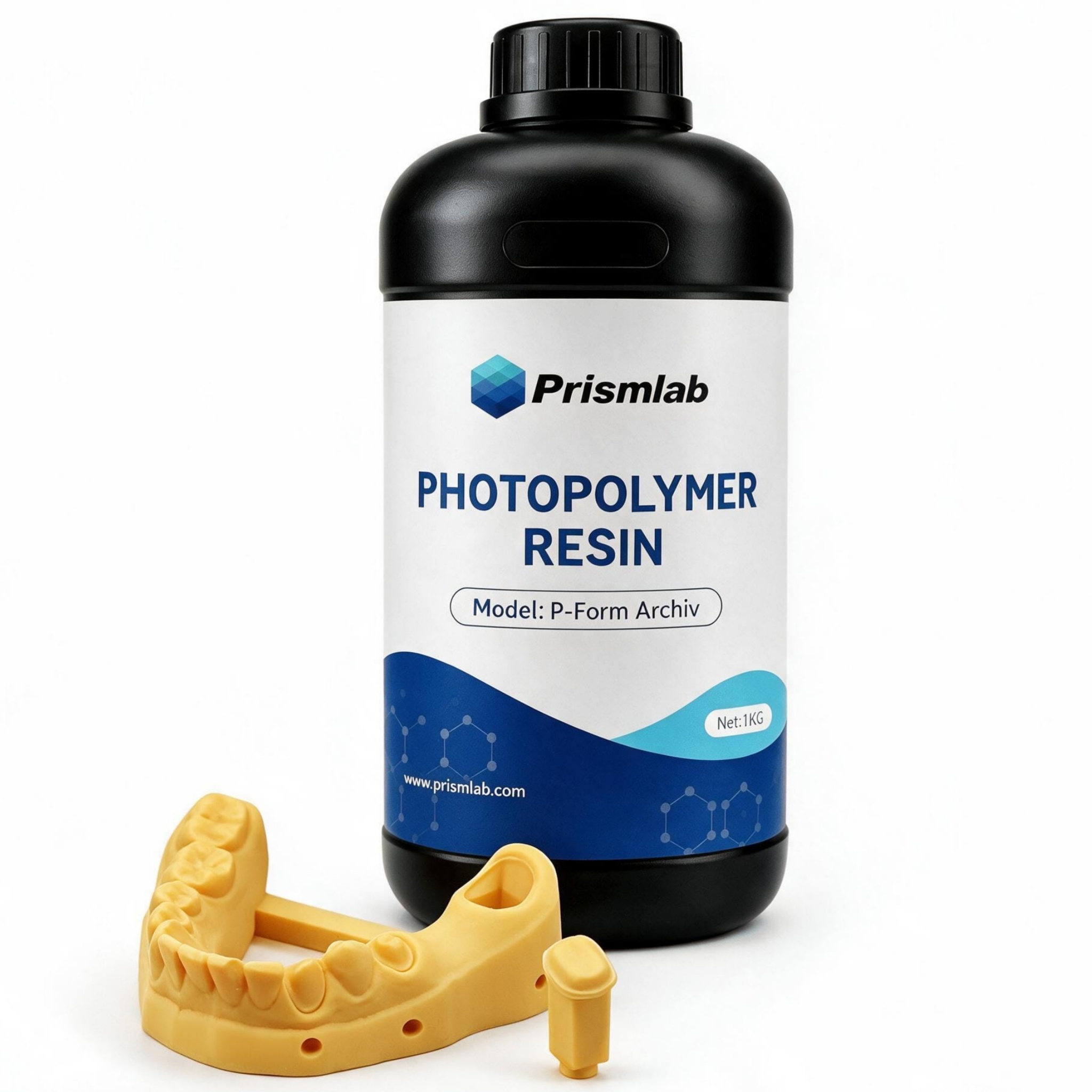

P-Form Archiv
- Ultra-long-term dimensional stability; printed parts resist deformation and aging during long-term storage, maintaining accurate records.
- High surface hardness and excellent scratch resistance protect the model surface during measurement, adjustment, and repeated handling.
- Excellent color stability and discoloration during long-term storage, maintaining professional appearance and diagnostic accuracy.
Material Features
Ultra-Long-Term Dimensional Stability
P-Form Archiv offers outstanding long-term dimensional stability with minimal dimensional change during storage, effectively countering post-polymerization shrinkage and internal stress relaxation of resin materials. Models retain a precise morphology consistent with the original data even after extended storage, meeting the demanding dimensional accuracy requirements for diagnostic record models.
High Surface Hardness & Scratch Resistance
The material features high surface hardness. Printed models resist scratches and wear during measurement, marking, adjustment, and repeated handling, maintaining clear and sharp surface details over time to ensure complete presentation of diagnostic information.
High Precision & Detail Reproduction
The material offers high-precision molding capability, clearly reproducing fine anatomical structures such as tooth contours, gingival texture, and occlusal surface details. With high surface finish and sharp model edges, it meets the precision requirements for orthodontic, restorative, and diagnostic models.
Test Data
| No. | Test Item | Unit | Test Standard | Performance |
|---|---|---|---|---|
| 1.1 | Flexural Strength | MPa | ASTM:D790 | 64 |
| 1.2 | Flexural Modulus | MPa | ASTM:D790 | 1679 |
| 1.3 | Notched Impact Strength | J/m | ASTM:D256 | 39.2 |
| 1.4 | Water Absorption | % | ASTM:D570 | 0.7 |
| 1.5 | Finished Product Shelf Life | Years | / | ＞3.2 |
Applications

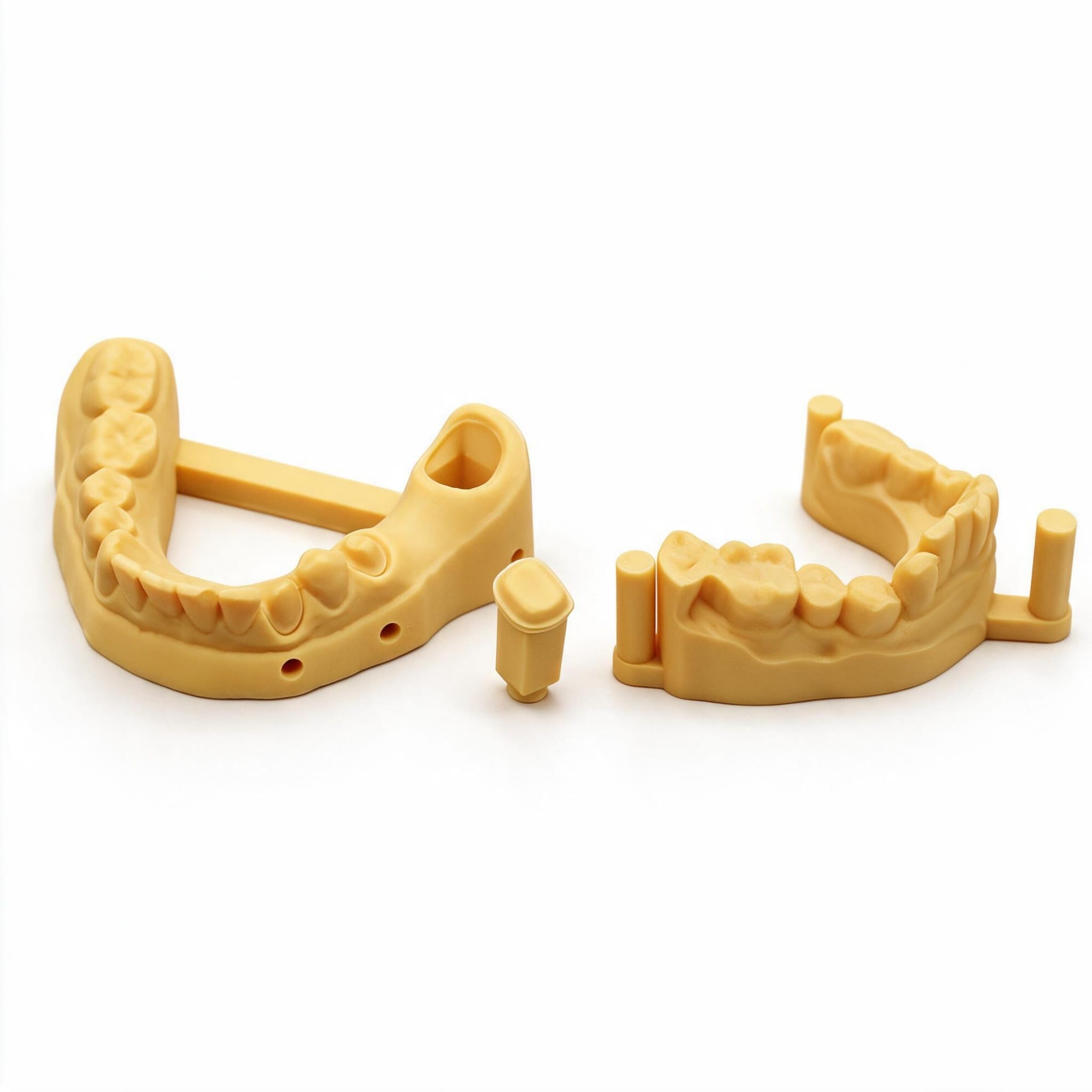

Dental Models
P-Form Archiv is specifically engineered for digital diagnostic record models and long-term preservation needs, suitable for pre- and post-treatment orthodontic diagnostic models, restorative treatment planning models, occlusal analysis models, and teaching demonstration models. Combining ultra-long-term dimensional stability, high surface hardness, excellent color stability, and an MMA-free formula, it pairs with Prismlab high-precision 3D printers for high-precision, high-stability batch output. From digital design to finished print, it provides a one-stop solution for long-term preservation model production needs in dental laboratories, digital dental clinics, and educational institutions.
- Ultra-long-term dimensional stability without deformation during storage, maintaining accurate records
- High surface hardness and scratch resistance, resisting damage during measurement and adjustment
- Excellent color stability
