RP-600D 3D Printer
Orthodontic Mass Production 3D Printer
Large-format batch output
Fully automatic workflow
Rapid printing
10×Faster than
traditional 3D printers
65Models per
batch for mass production
24hContinuous
unattended printing
37μmXY
resolution for fine detail
Technical Data
Equipment Parameters
| Product Name | RP-600D |
|---|---|
| Build Volume | 576 mm × 324 mm × 65 mm |
| Accuracy | 50 μm |
| XY Resolution | 37 μm |
| Layer Thickness | 50 – 120 μm |
| Features | Automatic Model Collection |
| Main Application | Orthodontics |
| Curing Principle | Top-mounted, Matrix Exposure System |
| Device Dimension | 950 mm / 1120 mm (incl. collection box) × 1090 mm × 2150 mm |
| Weight | 520 kg |
| Material | Photopolymer Resin |
| Input File Format | STL |
Application

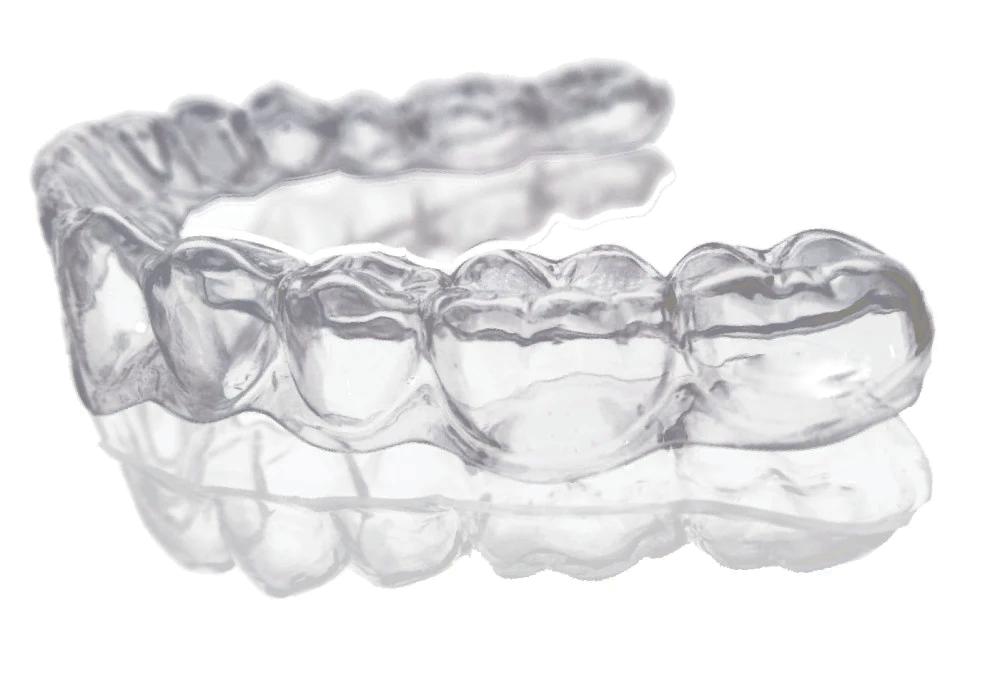

Orthodontics & Clear Aligner Production
Purpose-built for orthodontic laboratories and aligner manufacturers, the RP-600D prints high-precision dental models batch after batch — the reliable backbone of digital orthodontic workflows from scan to thermoforming.
Orthodontic
ModelsClear
AlignersDental
LabsMass
Production
Ready to Scale Your Orthodontic Production?
Contact the Prismlab team for a live demo, sample models and a tailored quotation.
