01

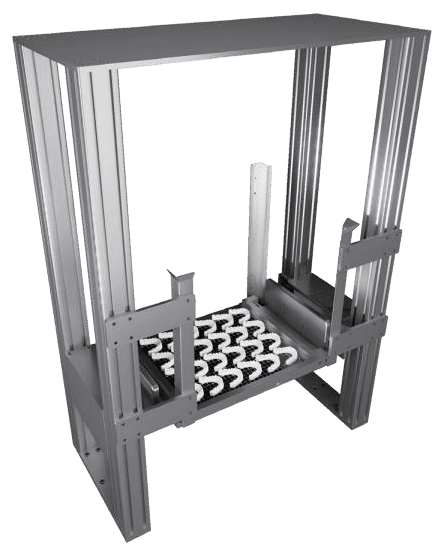

AutomaticFeeding
Automated loading with temporary storage for 8 trays, holding up to 240 dental models.

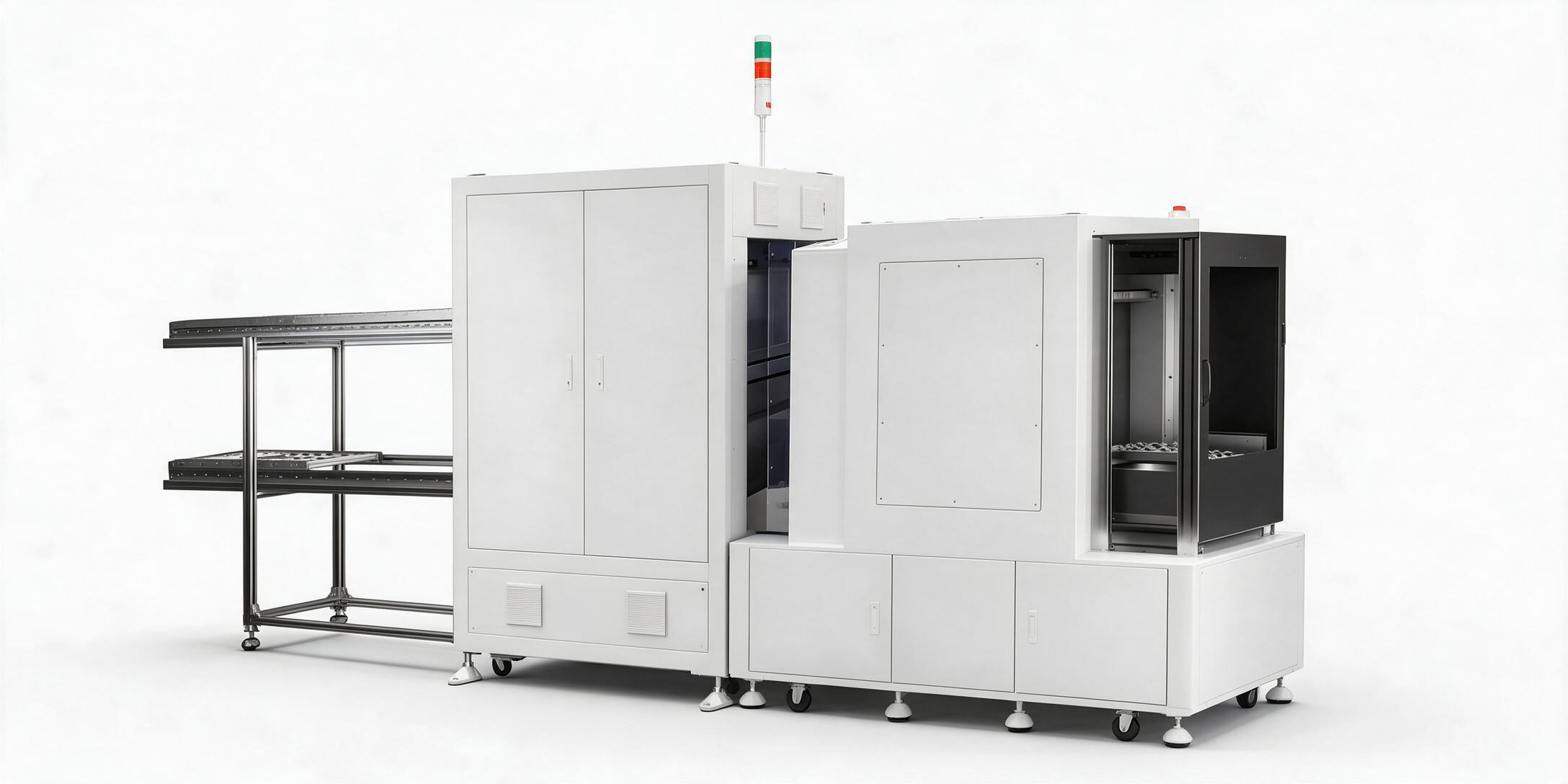

PL-A08 Post Processing Solution
Automatic Washing Free Post-Processing Line
Water-free and alcohol-free
Washing-free post-processing
A fully automated solution integrating drying and curing processes
20
Minutes Complete Processing
70%+
Post-processing Time Reduction
560
pcs/hour Curing Capacity
Traditional Process VS PL-A08
Traditional Workflow
Printing
↓
Alcohol Washing
↓
Drying
↓
Curing
Long processing time
Additional consumables
Additional consumables
PL-A08 Workflow
Automatic Feeding
↓
Shake
↓
Dry
↓
Curing
Washing Free
20 Minutes Complete Process
20 Minutes Complete Process
Automated Workflow
From feeding to discharge in approximately 20 minutes
PL-A08 integrates automatic feeding, high-speed shake drying and UV curing into one continuous post-processing line for dental model production.
Total Process: 19.5 min
02
3 minShake Dry
High-speed 600 rpm drying removes surface liquid without alcohol washing or chemical consumables.
03
6 minUV Curing
Controlled UV curing at 150 mW/cm² delivers consistent final curing for dental models.
04

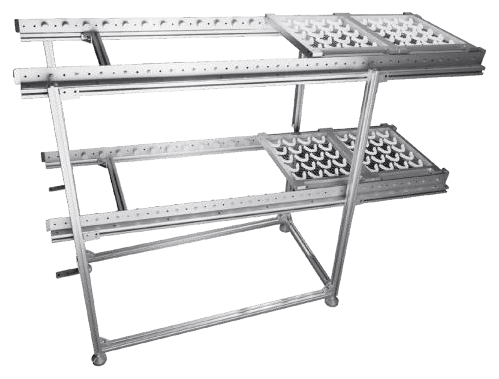

10.5 minDischarge
Finished models are transferred at 80 mm/s and discharged for immediate entry into the next production cycle.

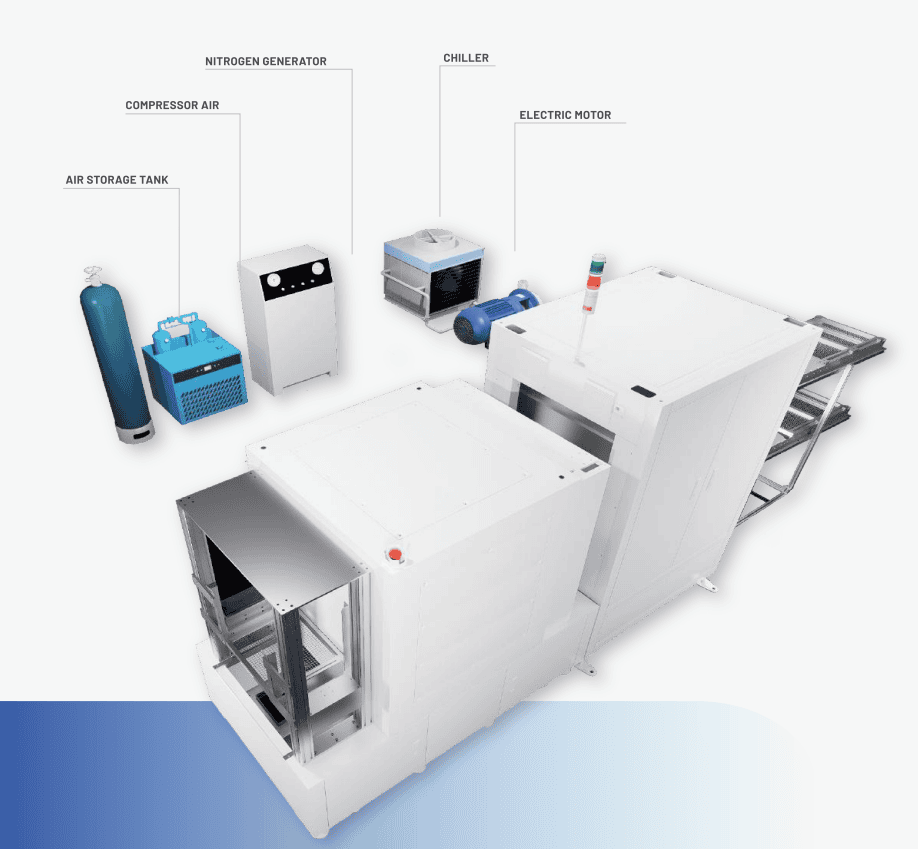

System Configuration
Integrated utilities for stable, continuous operation
PL-A08 combines the automated processing line with supporting utility modules, helping production teams maintain stable drying, curing and transfer performance across high-volume shifts.
Chiller
Supports stable temperature management during continuous operation.
Nitrogen Generator
Provides controlled gas support for the curing environment.
Compressed Air System
Includes compressor air and air storage tank modules for pneumatic operation.
Electric Motor
Drives high-speed drying and automated transfer through the production line.
Equipment Parameters
Technical specifications
Key dimensions, electrical requirements, process performance and production capacity for PL-A08 installation planning.
| Parameter | PL-A08 Specification |
|---|---|
| Product Name | PL-A08 |
| Equipment Size | 3.5 m (L) × 1.05 m (W) × 1.9 m (H) |
| Frequency | 50 Hz |
| Voltage | AC 220 V |
| Power | 11 kW |
| Temporary Storage Tray | 8 trays of dental models, up to 240 dental models |
| Drying Speed | 600 revolutions per minute |
| Transfer Speed | 80 mm/s |
| Curing Intensity | 150 mW/cm² |
| Production Capacity | 560 pcs/hour |
Ready to Upgrade Your Workflow?
Build a washing-free post-processing line for dental production
