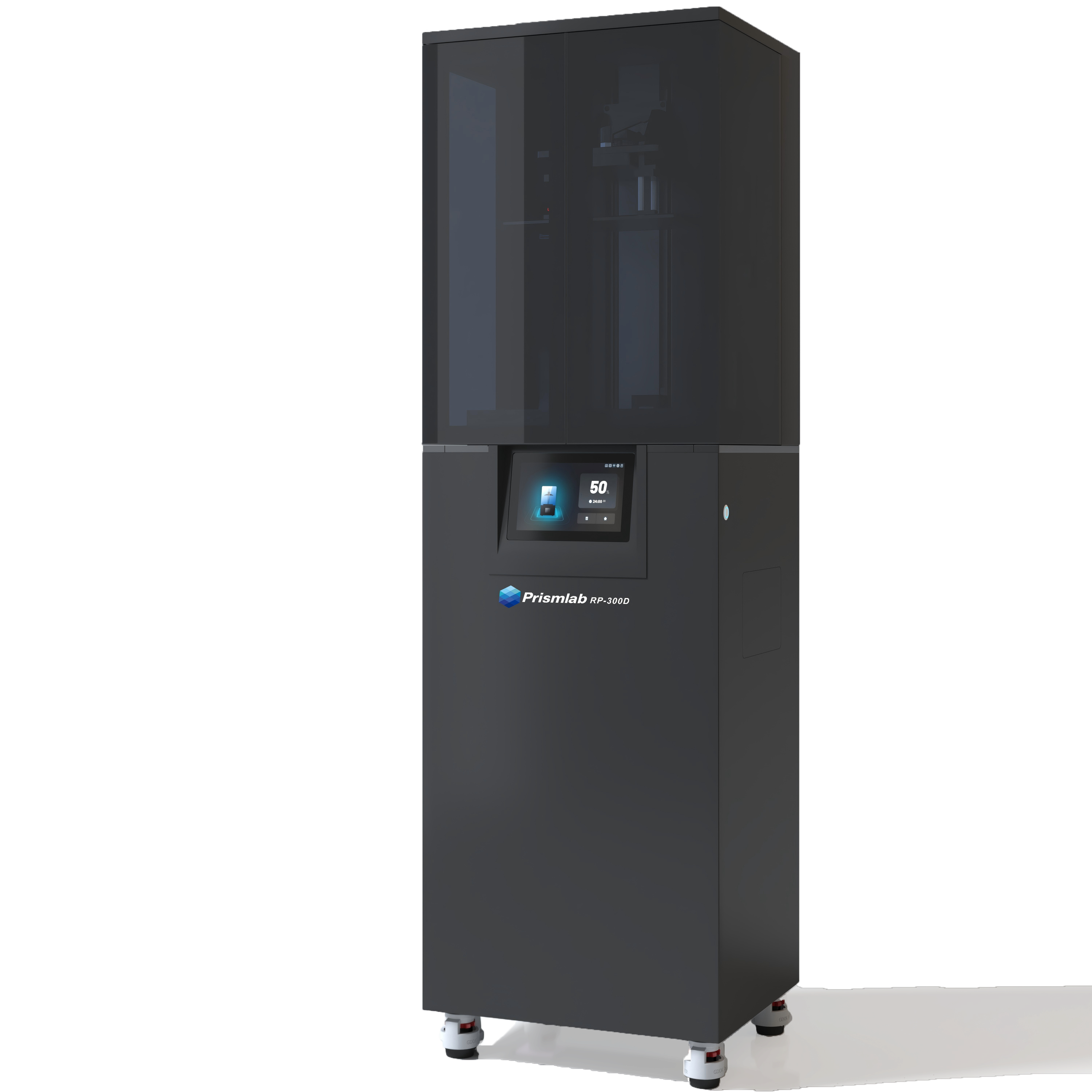

RP-300D 3D Printer
Intelligent manufacturing · Stable production
Batch production— up to 24 implant models in one run
300 × 160 × 380 mm large-format build volume
Demolding Systerm — goodbye manual prying
Core Capabilities
Built for mass production,
engineered for every scenario
Highly Digitalized Workflow
End-to-end digitalization enables batch automated production, connecting scanning, design and printing into one seamless dental workflow.
Stable Mass Production
Designed for continuous operation with 90% ~ 92% light uniformity and ±0.05 mm XY-axis accuracy — consistent results, batch after batch.
High-efficiency Printing
No part-removal required between jobs and a 380 mm effective Z-axis travel dramatically reduce labor input and maximize daily throughput.
Multi-material Compatibility
Broad resin compatibility covers the full spectrum of dental applications — from implant models to surgical guides and denture bases.

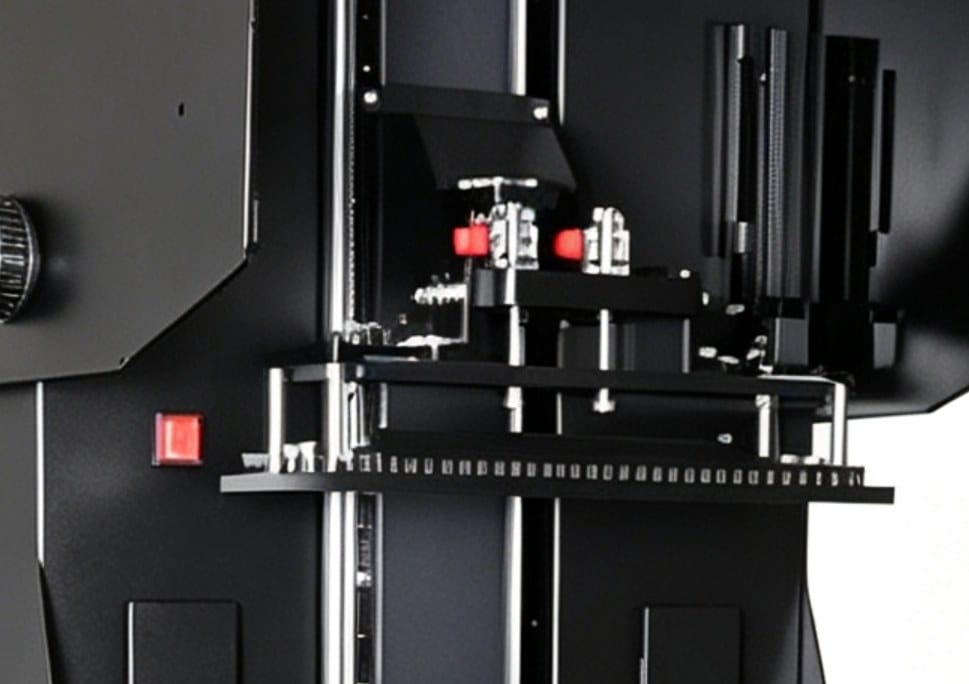

Hand-controlled demolding device
Demolding Device
Goodbye manual prying.
One motion, a full plate
released.
The RP-300D's hand-controlled demolding device releases the entire build plate in one simple manual action — no prying tools, no scraping, no damaged parts. The operator stays in control, and the machine is ready for the next batch in seconds.
- Hand-controlled release — simple, reliable, operator-friendly
- No prying or scraping — protects parts, plate and hands
- Even release across the full 300 × 160 mm build plate
- Shorter turnaround between batches, higher daily output

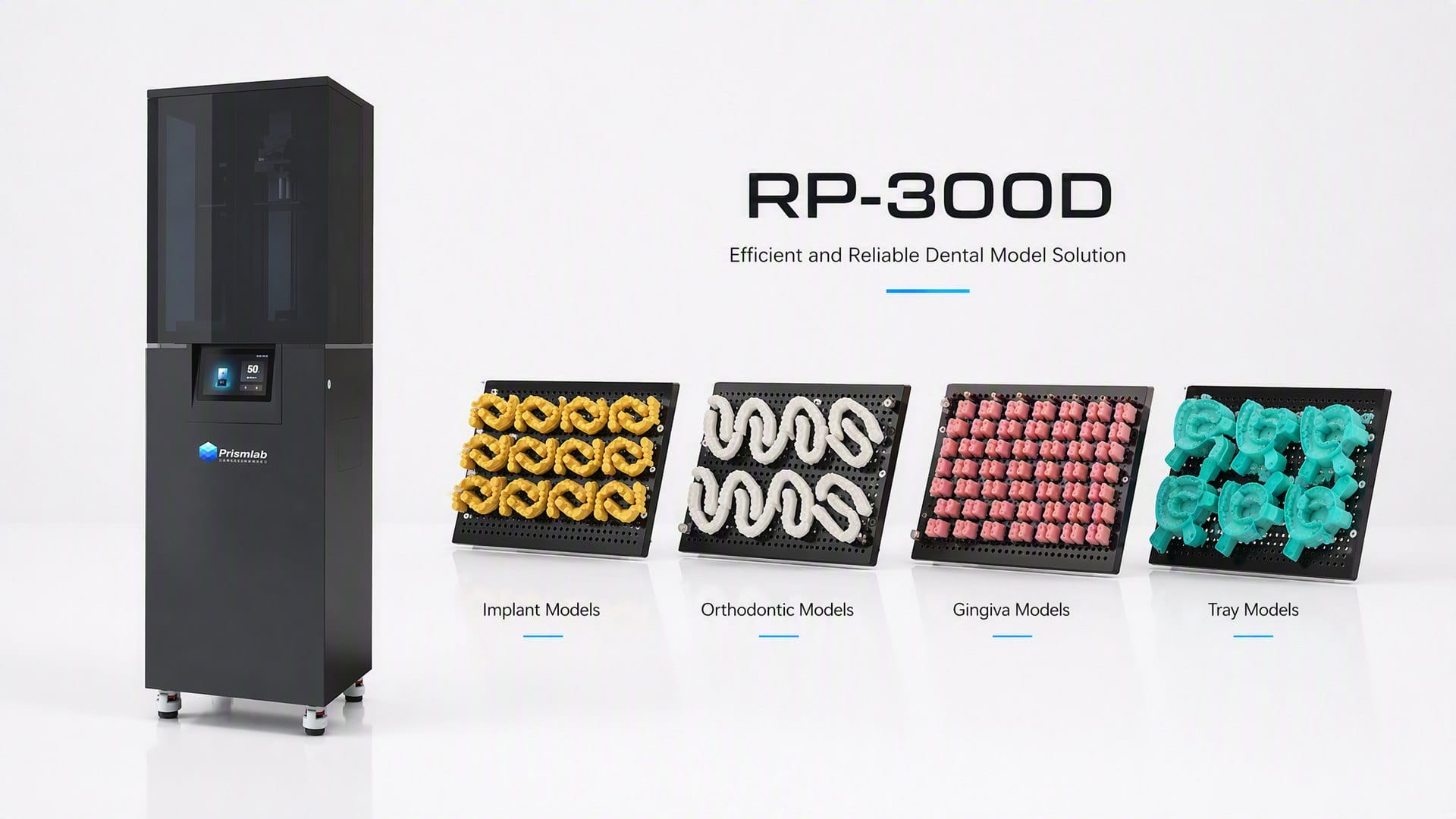

Application Fields
Full-scene coverage for digital dentistry
Multi-material compatibility means one machine handles every major dental indication in your lab.
Implant Model
24 / batchPrint up to 24 implant models in one single batch with 0.02 mm pixel precision — accuracy your clinicians can trust.
Orthodontic Model
Full-plate clear-aligner and orthodontic workflows at scale.
Tray
A full plate of custom impression trays, printed fast.
Gingiva Model
Soft-tissue gingiva masks for implant workflows.
One machine, every dental application
Machine Specifications
Technical specifications
- Screen Size
- 14-inch 16K
- Screen Resolution
- 15120 × 6230 dpi
- Screen Pixel Precision
- 0.02 ~ 0.026 mm
- Build Volume
- 300 × 160 × 380 mm
- Effective Z-axis Travel
- 380 mm
- Z-axis Accuracy
- 0.02 mm
- XY-axis Accuracy
- ±0.05 mm
- Light Uniformity
- 90% ~ 92%
- Print Layer Thickness
- 0.1 / 0.05 / 0.025 mm
- Printing Speed
- 10 ~ 20 mm/h
- Overall Machine Dimension
- 530 × 438 × 1738 mm
- Overall Machine Weight
- 100 kg
Ready to scale your digital dental production?
Discover what the RP-300D can bring to your lab or clinic — batch production, manpower unleashed.
