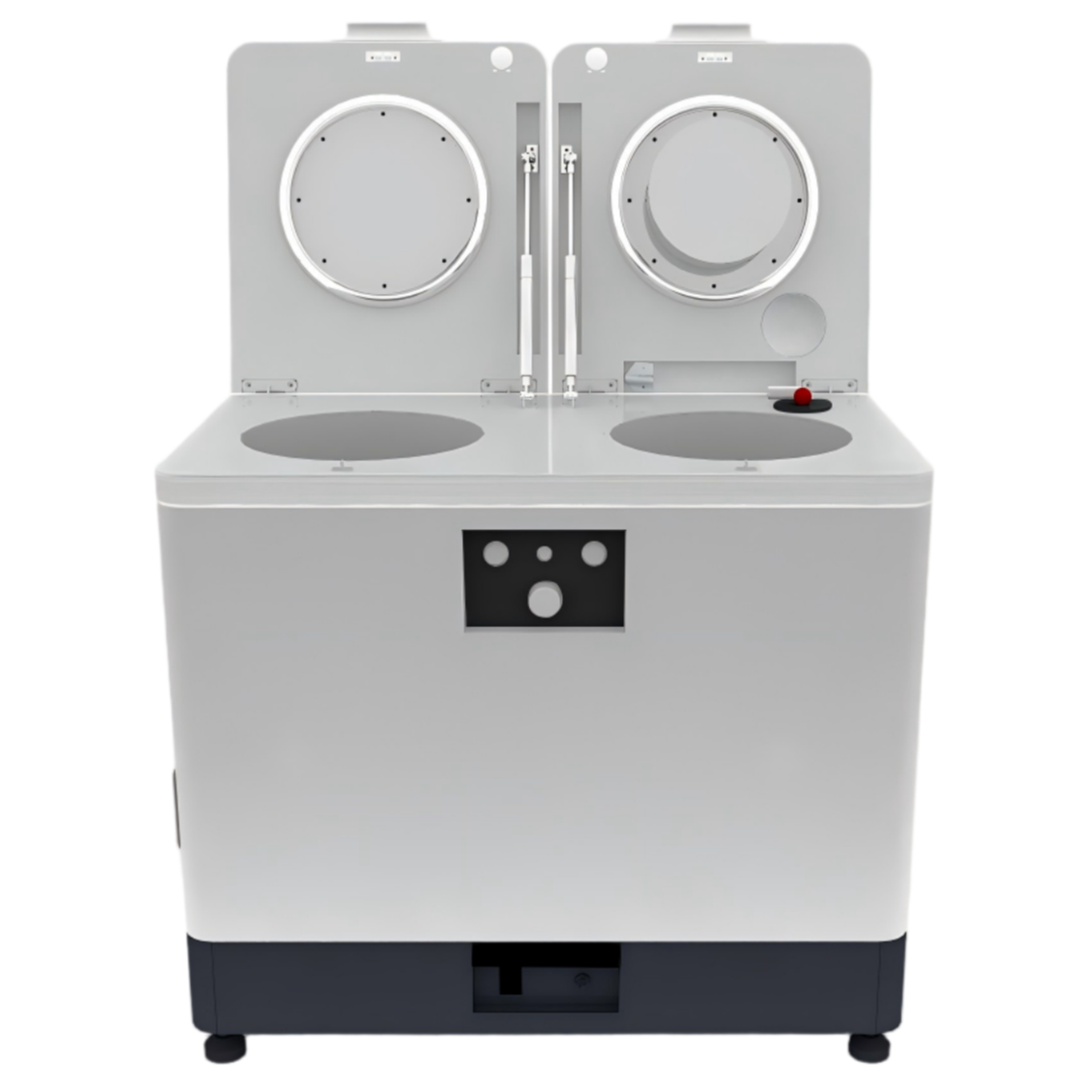

PL-A09 Post Processing Equipment
Alcohol-Free Dental Model Cleaning Machine
Alcohol-free
21 min cycle
Ultrasonic cleaning
- Full Cycle
- 21 min
- Batch Capacity
- 20 models
- Solution Reuse
- 80 %
- Cleanliness Rate
- 99.2 %
Core Advantages
Powerful Cleaning, Without a Drop of Alcohol
The PL-A09 pairs an accurate molecular cleaning formula with ultrasonic technology — safer for your team, gentler on your models, and kinder to the environment.
Alcohol-Free
No alcohol at any stage of the process — eliminating flammability risks and creating a safer workshop environment.
80% Solution Reuse
The washing solution reuse rate is as high as 80%, cutting consumable costs and reducing waste across every shift.
20 Models per Batch
Clean up to 20 dental models at once — batch capacity that keeps pace with a busy digital dental lab.
Biological-Grade Safe Formula
A biologically safe cleaning formula with zero volatile organic compounds (VOCs) — clean air, clean models.
99.2% Cleanliness Rate
Accurate molecular cleaning power removes uncured resin from every surface, achieving a verified 99.2% cleanliness rate.
21-Minute Full Cycle
From loading to spin-dried models, the entire automated sequence completes in just 21 minutes — simply load and walk away.
Workflow
One Automated Cycle, Six Precise Stages
Load the basket, close the lid, and let the PL-A09 take your models from freshly printed to perfectly clean and dry.

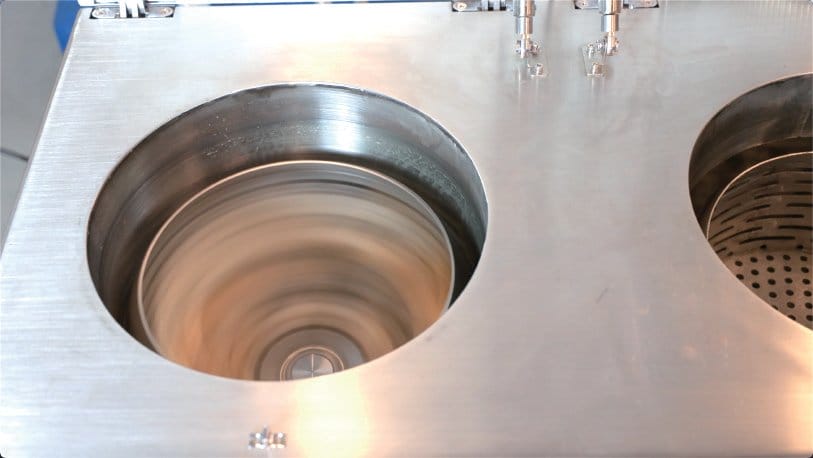

Defatting & Spin Drying
The cycle begins in the defatting chamber, where the basket spins to strip away surface residues and prepare the models for deep cleaning.

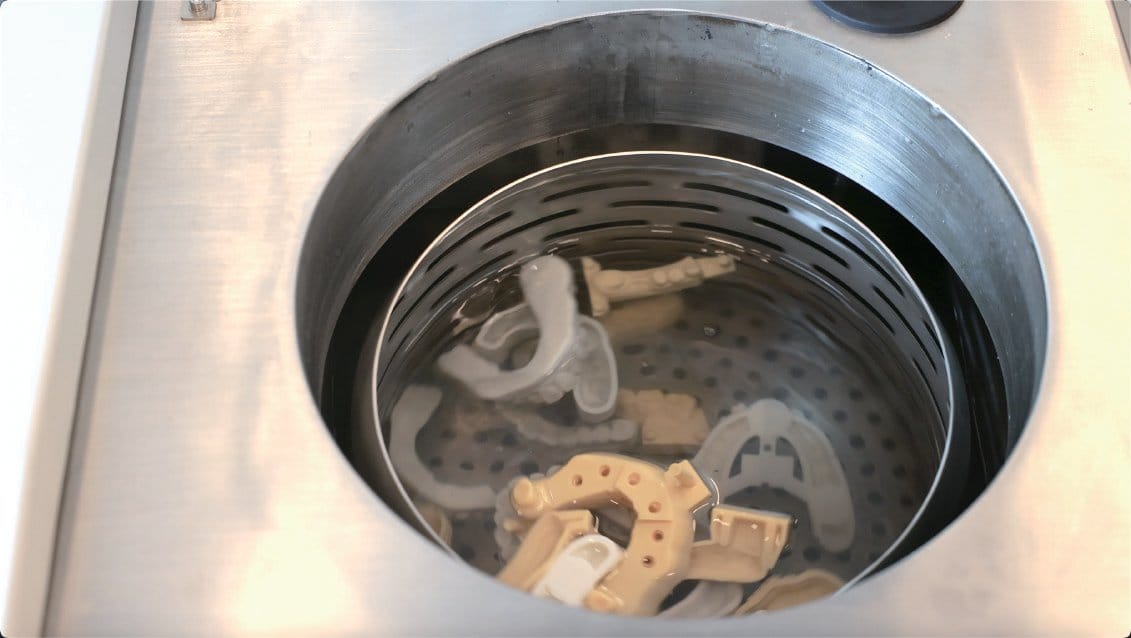

First Cleaning
Models are immersed in the alcohol-free cleaning solution for the first wash, dissolving the bulk of uncured resin from every surface.

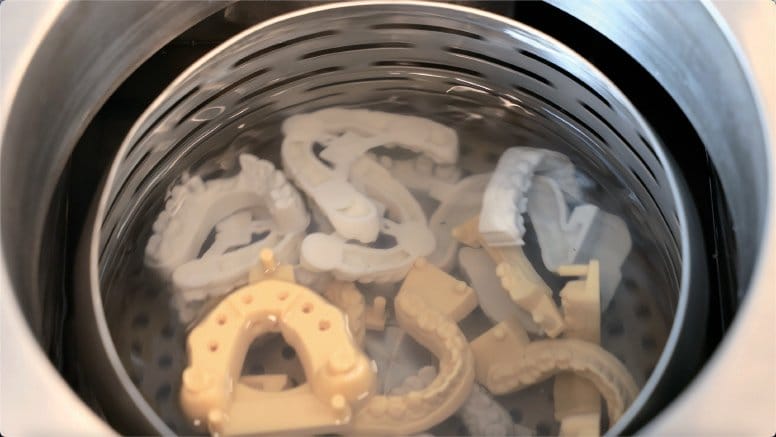

Second Cleaning
A second solution bath lifts away the remaining residue, reaching fine details and deep geometries that a single wash would miss.

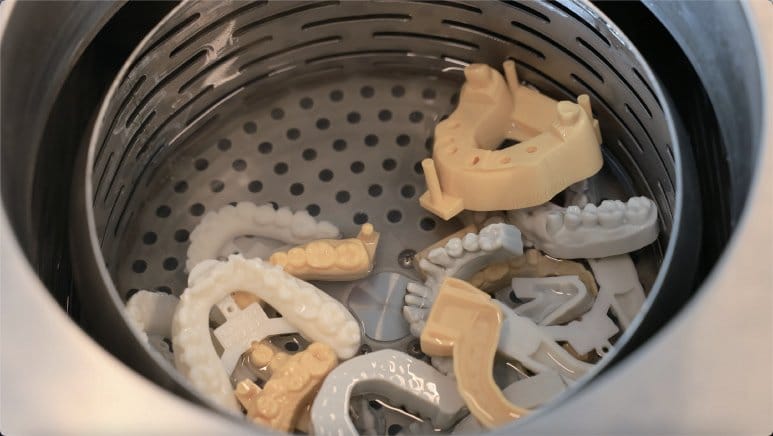

Ultrasonic Water Washing
A 40 kHz ultrasonic transducer drives a deep water rinse, flushing every last trace of cleaning solution from the models.

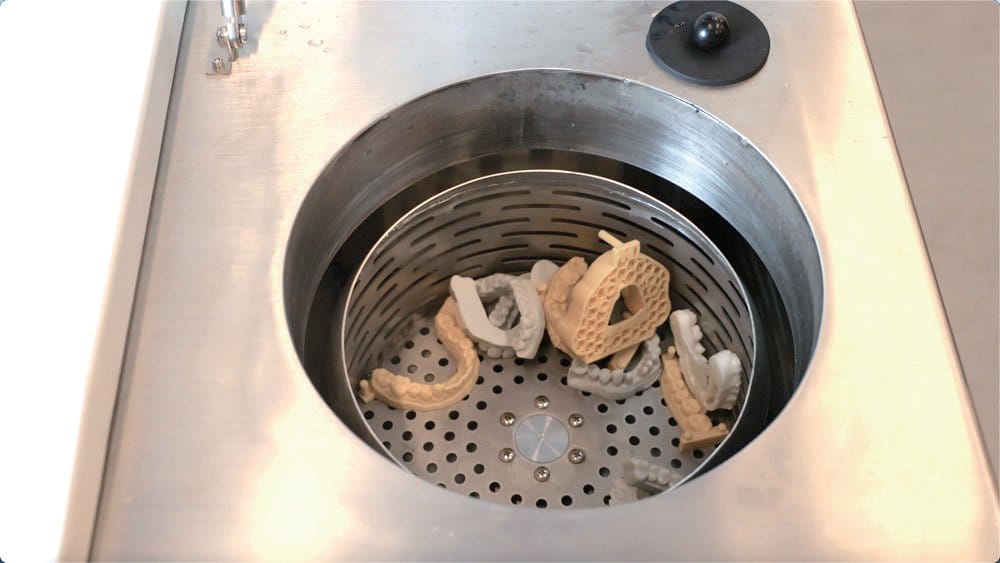

Spin-Dry
The 90 W spin dryer removes rinse water quickly and evenly, leaving models dry and ready for post-curing.

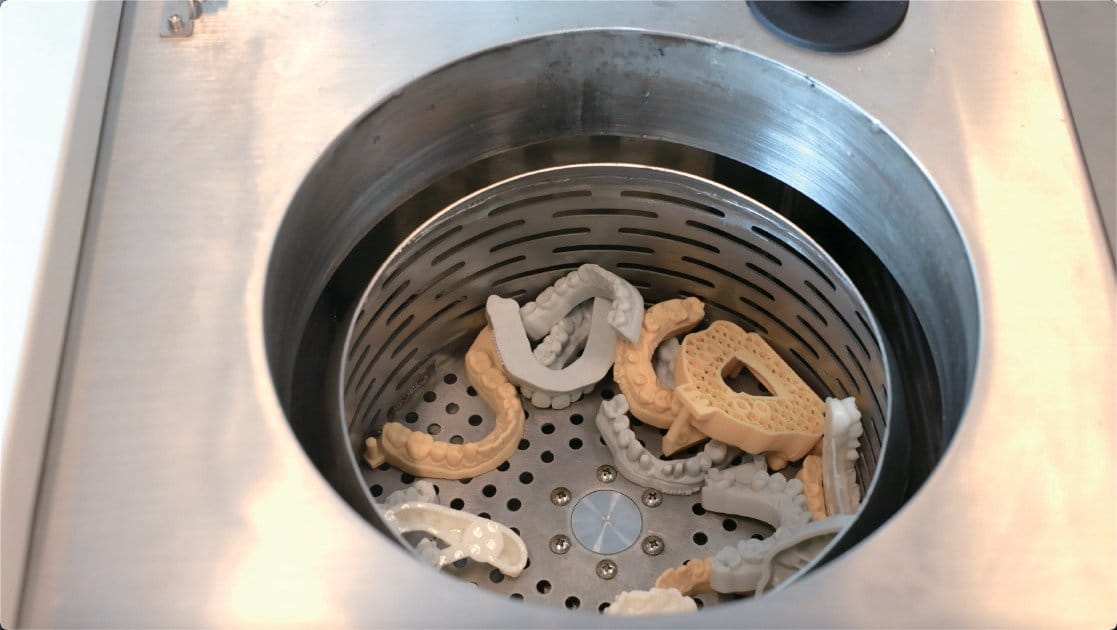

Cleaning Completed
Open the lid and lift out the basket — up to 20 models, spotlessly clean and dry, ready for UV curing and final inspection.

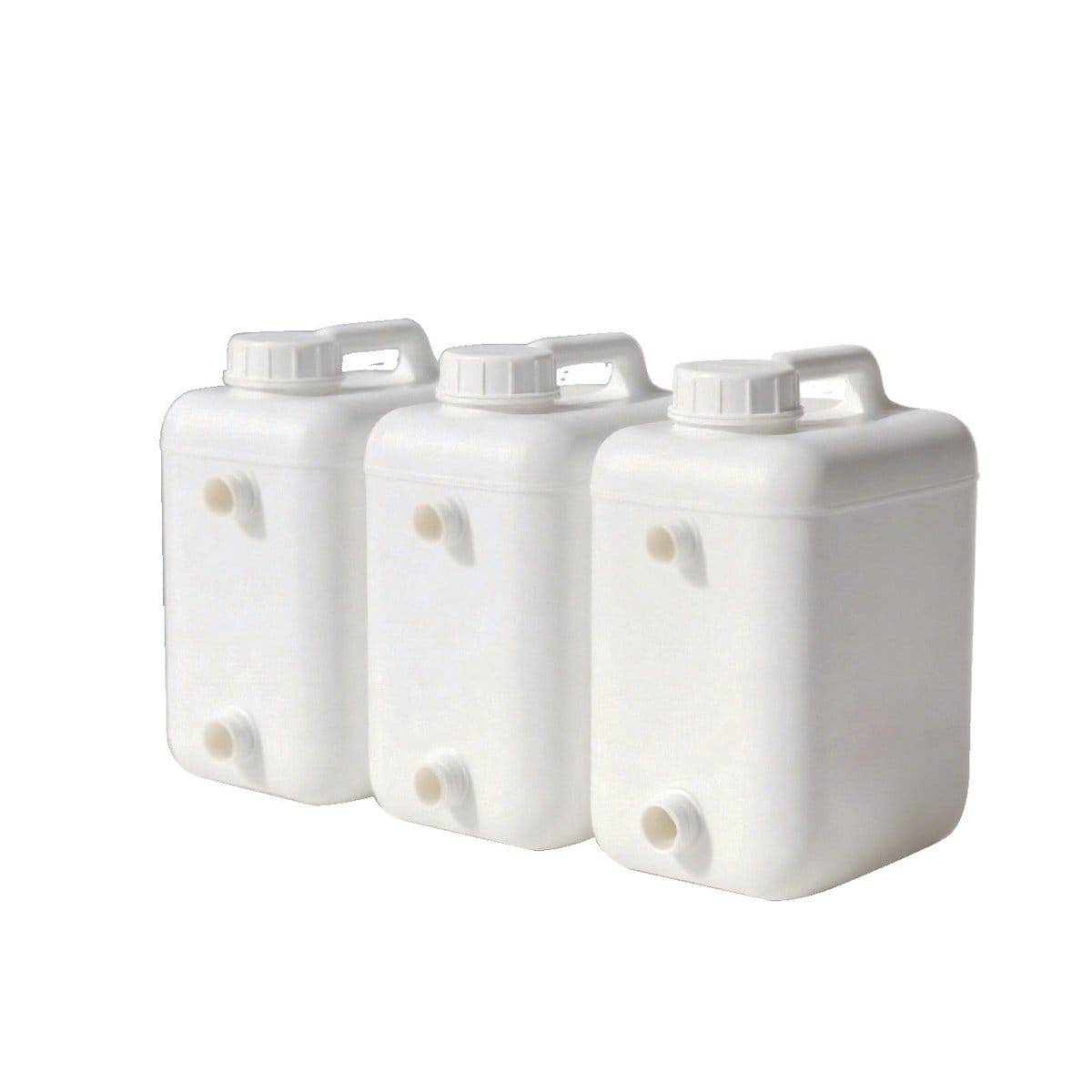

Liquid Barrels
Dedicated Barrels for Solution & Water
The PL-A09 works with three 25 L barrels — two for cleaning solution and one for water. Quick-swap barrels keep refilling simple, while the 80% solution reuse rate stretches every fill further.
- Capacity
- 25 L
- Height
- 490 mm
- Footprint
- 350 × 230 mm
Product Parameters
Technical Specifications
| Series | PL-A09 |
|---|---|
| Device Dimensions | 700 × 450 × 570 mm (L × W × H) |
| Cleaning Time | 21 min |
| Cleaning Frame Size | Diameter 220 mm · Total height 120 mm · Straight section 100 mm |
| Power Supply Voltage | 220 V |
| Operating Temperature | Room temperature |
| Total Power | 2.2 kW |
| Cleaning Machine Power | 400 W |
| Spin Dryer Power | 90 W |
| Ultrasonic Power | 240 W |
| Ultrasonic Transducer | 40 kHz |
