01
Integrated Design
Compact industrial structure with optimized performance.

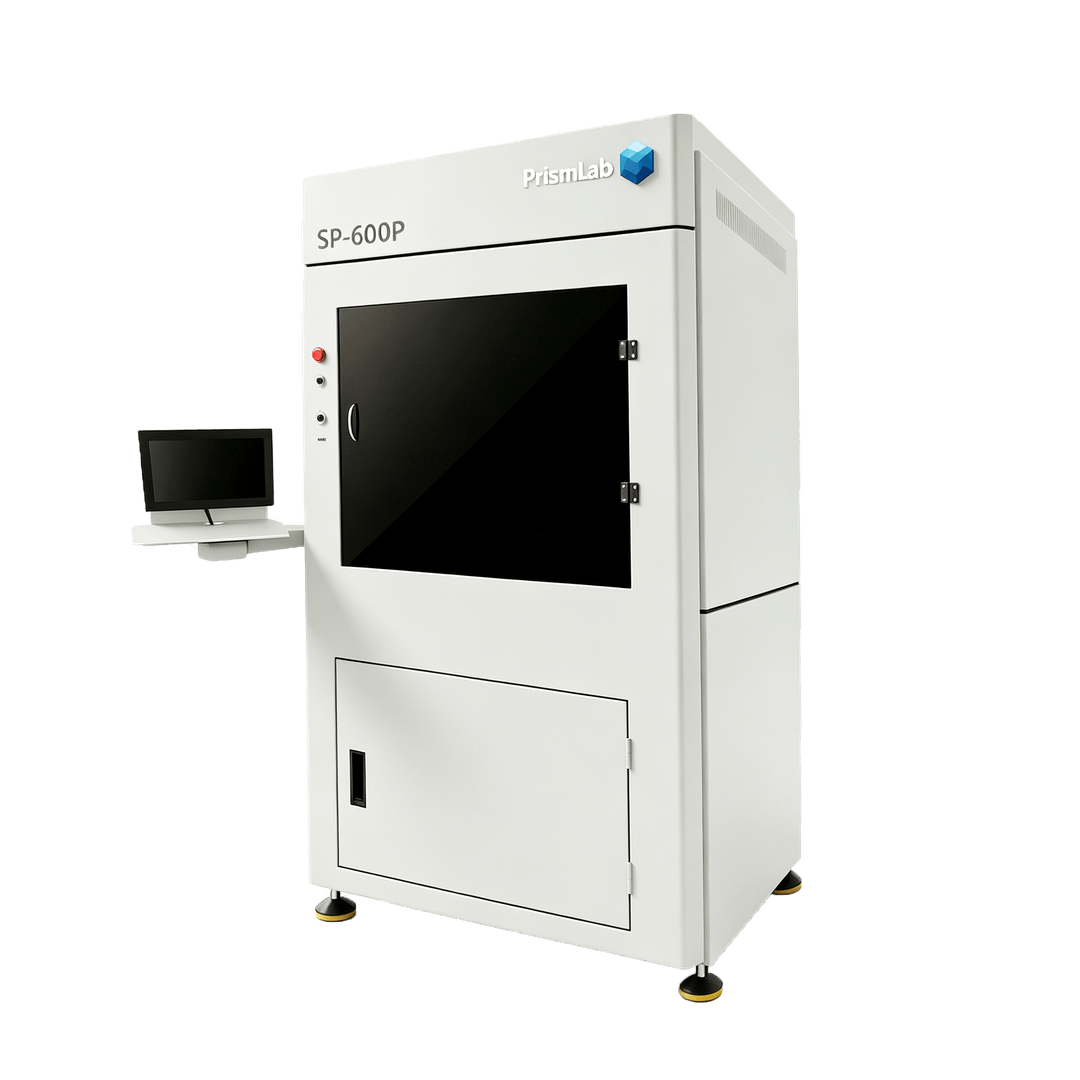

SP Series 3D Printer
Industrial SLA 3D Printing
Large-Format Production Capacity
Precise and Stable Printing Quality
Ideal for Multiple Sectors
02
Optical System
Imported optical components ensure precision.
03
Exclusive Material
Optimized materials for multiple industries.
04
High Stability
Reliable continuous production capability.
Precision Output
Fine surface detail with production-grade stability

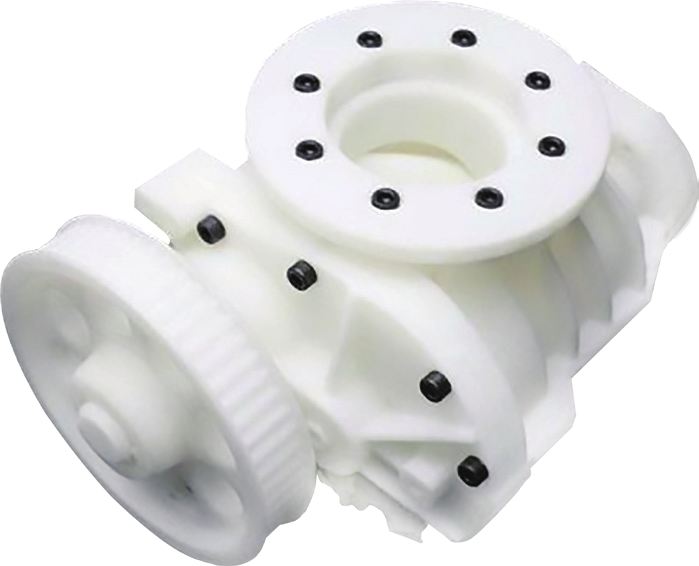

Production Performance
Built to handle complex parts and larger batches
With a diode-pumped solid-state laser, intelligent vacuum absorptive scraper and adjustable beam size, the SP Series supports efficient fabrication across prototypes, functional components and customized industrial parts.
01
Large build envelope
SP-600P and SP-800P offer customizable build volumes up to 800×800×400 mm.
02
Fast scanning
A 6–12 m/s scan speed supports efficient production for time-sensitive projects.
03
Stable foundation
The XYZ integrated marble platform provides a rigid reference for repeatable positioning.
Equipment Parameters
SP-600P and SP-800P technical specifications
Compare shared platform capabilities and model-specific dimensions, weight and build volume.
| Parameter | SP-600P | SP-800P |
|---|---|---|
| Laser Type | Diode-pumped solid-state laser | |
| Wavelength | 355 nm | |
| Laser Power | 3 W | |
| Recoating Mode | Intelligent vacuum absorptive scraper | |
| Normal Build Thickness | 0.1 mm | |
| Accuracy | <100 mm: ±0.1 mm; ≥100 mm: 1/1000 mm × workpiece length | |
| Precise Build Thickness | 0.05–0.1 mm | |
| Beam Size | 0.1–0.8 mm, adjustable | |
| Scan Speed | 6–12 m/s | |
| Build Rate | 50–200 g/h | |
| Benchmark Platform | XYZ integrated marble platform | |
| Position Repeatability | ±0.01 mm | |
| Main Applications | Prototyping, orthodontics, aerospace, art & design, architecture, automotive accessories, education | |
| Pre-processing Software | Materialise Magics RP (optional) | |
| Input File Format | STL | |
| Power Requirement | 200–240 VAC, 50/60 Hz, single phase, 10 A | |
| Ambient Temperature | 20–26°C | |
| Relative Humidity | Less than 40%, non-condensing | |
| Device Dimensions | 1.3 × 1.1 × 2.05 m | 1.5 × 1.7 × 2.35 m |
| Weight | 700 kg | 1000 kg |
| Maximum Build Volume | 600 × 600 × 400 mm Customizable |
800 × 800 × 400 mm Customizable |
Swipe horizontally to view the full comparison table.
Applications
Redefine traditional industries
From design validation to specialized production, the SP Series adapts to a wide range of professional use cases.
01
Rapid Prototyping
Accelerate product iteration with accurate, large-format prototype production.
02
Orthodontics
Support dental model production and digital orthodontic manufacturing workflows.
03
Aerospace
Produce complex geometries for development, validation and customized components.
04
Art & Design
Transform detailed digital concepts into precise physical forms.
05
Architecture
Create scale models and structural concepts with refined detail.
06
Automotive Accessories
Support accessory development, customization and pre-production verification.
07
Education
Enable hands-on teaching, research and engineering training in additive manufacturing.
Need a tailored solution?
Contact Prismlab to evaluate build volume, material and application requirements.
Get in touch →
