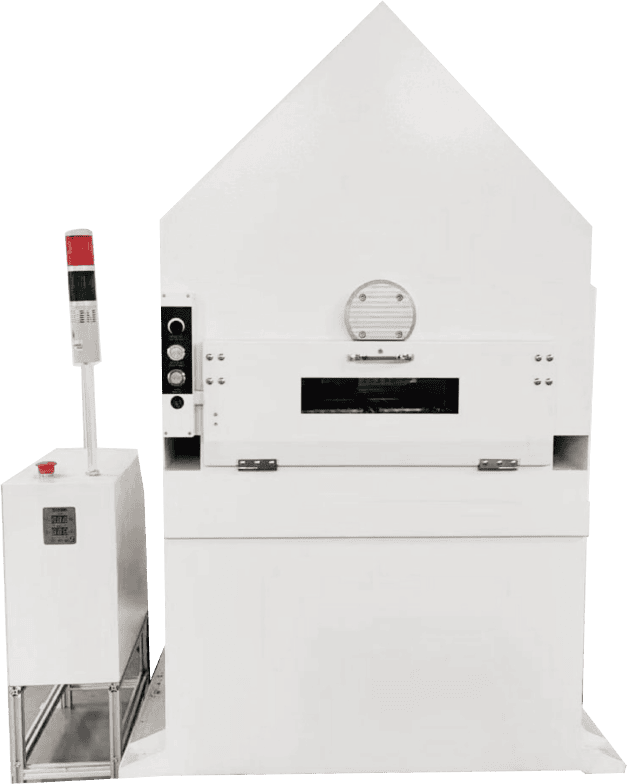

SM600
Centrifugal Drier
Stable high-precision MCU digital control with a two-line digital display and multi-channel data read/write for efficient spin drying.

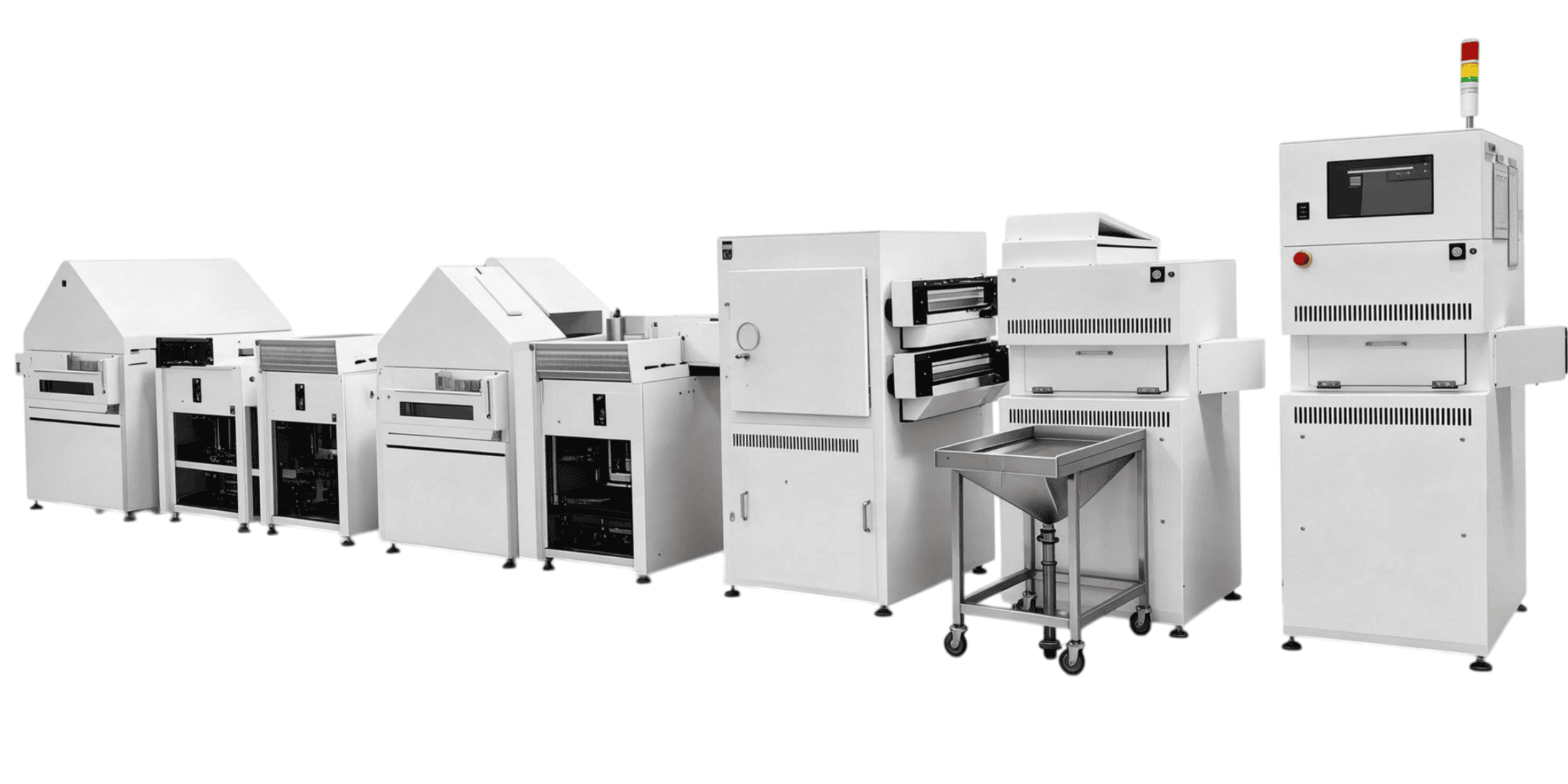

Modular Post-Processing System
3D Printing Post-Processing Line
Washing · Drying · Curing
Mass Batch Processing
High Consistency Finished Parts
Production Line Working Diagram
A complete workflow from washing to final UV curing
The line supports a multi-stage cleaning and drying process, helping operators remove residual material, improve part cleanliness and finish resin parts with controlled UV curing.
01
Centrifugal Drying
Initial liquid removal
3–5 min
02
First Washing
Remove residual impurities
6–10 min
03
Centrifugal Drying
Secondary spin drying
3–5 min
04
Second Washing
Further cleaning cycle
6–10 min
05
Ultrasonic Cleaning
Deep cleaning for complex parts
6–10 min
06
Hot Air Drying
Accelerate water evaporation
10 min
07
UV Curing
Final resin curing
10 min
Equipment Modules
Four machines, one integrated post-processing workflow

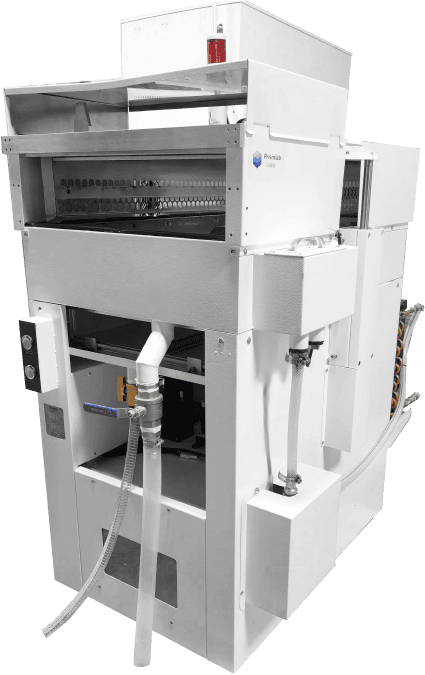

CM600-S
Ultrasonic Cleaner Machine
Cleans 3D printed parts and removes impurities, with door control, ultrasonic generator and cooling circulation for temperature management.

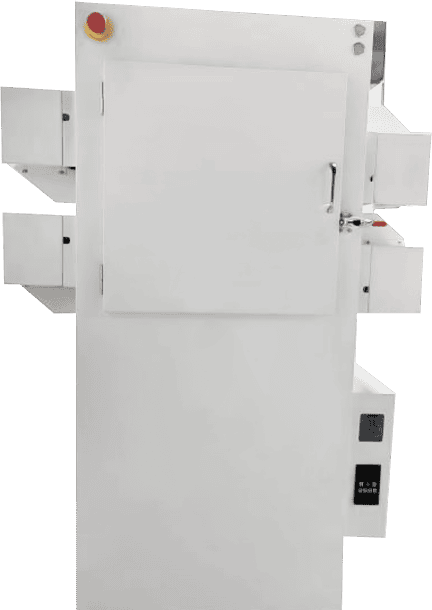

HM600
Hot Air Dryer Machine
Accelerates water evaporation with vibration, air heating and dual drying start controls, including automatic heating cut-off protection.

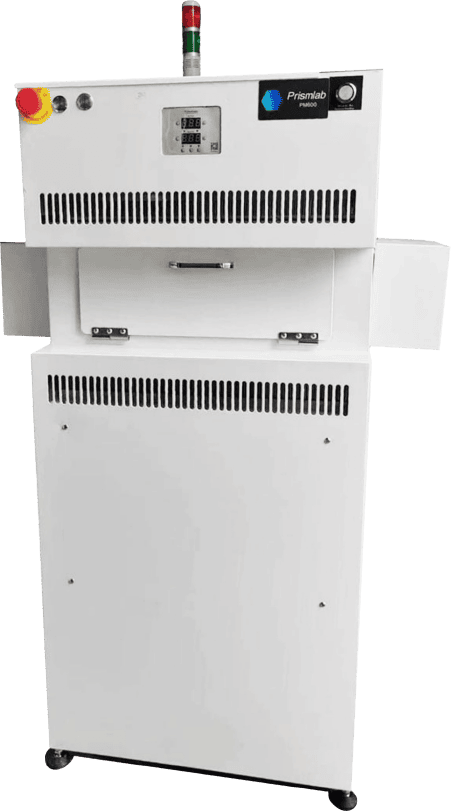

PM600
UV Oven
Provides immediate drying and UV curing, with PWM lamp start, adjustable irradiation time and power, and clear display feedback.
Equipment Parameters
Technical specifications
Core dimensions, power and voltage information for installation planning and equipment selection.
| Equipment | Main Function | Size | Power | Voltage | Temperature |
|---|---|---|---|---|---|
| SM600 Centrifugal Drier |
Spin drying and liquid removal | 880×1080×1330 mm Control box: 300×420×640 mm |
800 W | AC380 V, three-phase five-wire | — |
| CM600-S Ultrasonic Cleaner |
Ultrasonic cleaning and impurity removal | 1100×665×1070 mm | Pump: 60 W Ultrasonic generator: 1.5 kW |
220 V | Cooling circulation when set temperature is exceeded |
| HM600 Hot Air Dryer |
Fast hot-air drying | 1095×955×1415 mm | 4000 W | 220 V | 20–65°C |
| PM600 UV Oven |
Drying and UV curing | 1040×790×1210 mm | 3200 W | 220 V | 50–60°C |
Swipe horizontally to view the full parameter table.
Safety & Operation
Clear status, controlled temperature and practical protection
Status Indicators
Green and red lights indicate idle, running, completion and fault states across the equipment modules.
Over-temperature Protection
The hot air dryer stops heating when the temperature exceeds 65°C; recommended drying setting is 20–45°C.
Fault Alarm
The UV oven provides red-light warning and buzzer alarm when a fault occurs.
Ready to Upgrade Your Workflow?
Build a complete post-processing line for your 3D printing production
