25μm
RP-400D 3D Printer
Intelligent Automated Mass Production
Fully automated from dental design to printing and collection
Fully automated from dental design to printing and collection
High Printing Accuracy
384×216×100mm
Build Volume
5760×3240
Resolution
7×24h
Continuous Production
Automation
Only 2 Steps — No Manual Dependence
Reduce error costs and improve personnel efficiency. Compatible with mainstream scanners and design software.
Step 1 · Click Start
Data collection software handles the rest — automatic grabbing, layout, feeding, demolding and recycling.
Step 2 · Take It for Cleaning
Fully automated post-processing: smart collection & fixation, rough wash, ultrasonic cleaning, deep rinse, blow-dry and UV curing.
High Modularity
Integrated solution, compact and efficient — a complete automated post-processing workflow.
Safe & Eco-friendly
Exclusive cleaning liquid and green production for a safer, cleaner workshop.
Efficient & Stable
Multi-device compatible with a smooth conveying design for stable 24/7 operation.
Product Parameters
RP-400D Technical Specifications
| Build Volume | 384mm × 216mm × 80mm |
|---|---|
| Accuracy | ±33μm |
| Resolution | 5760 × 3240 |
| Layer Thickness | 50–120μm |
| Exposure Principle | Top-down area-array exposure molding |

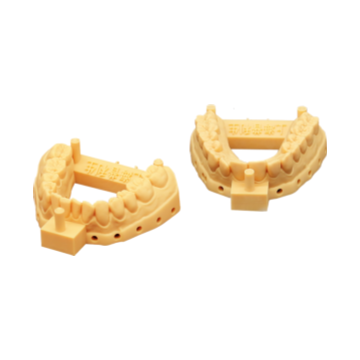

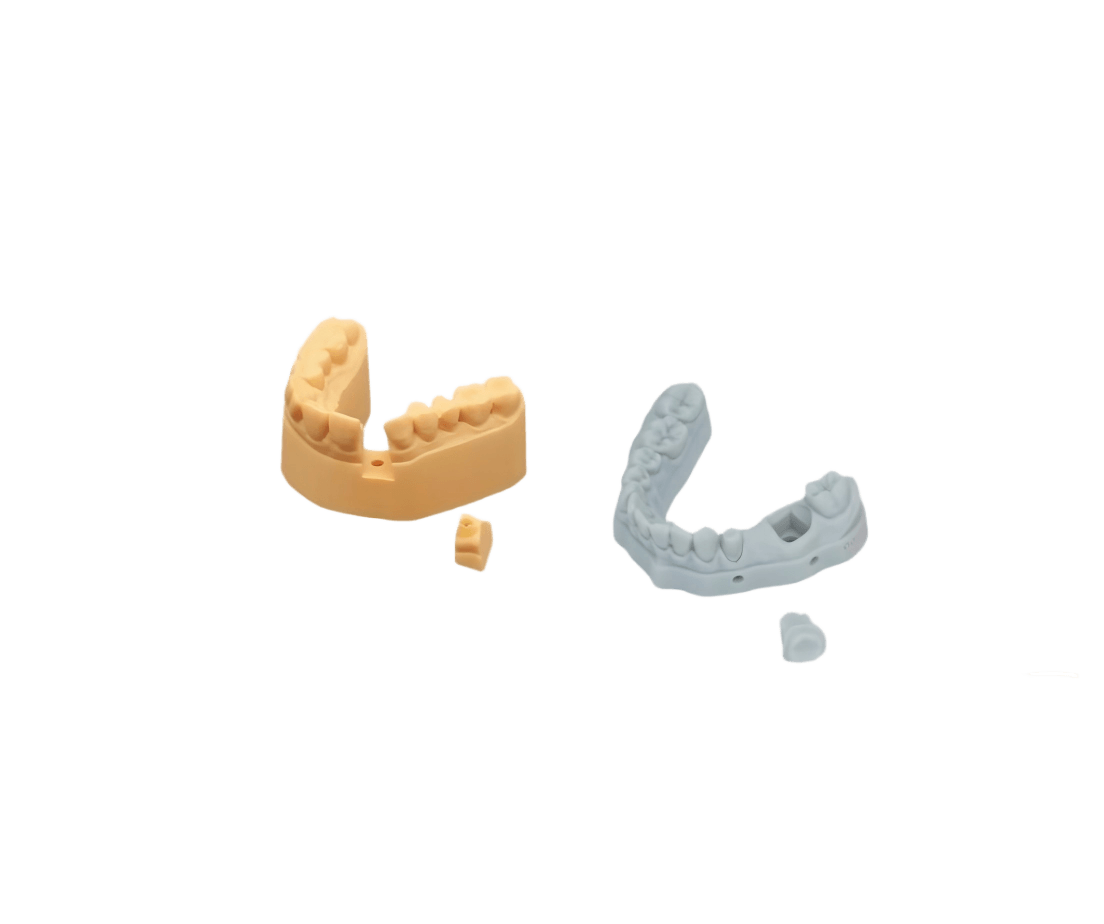

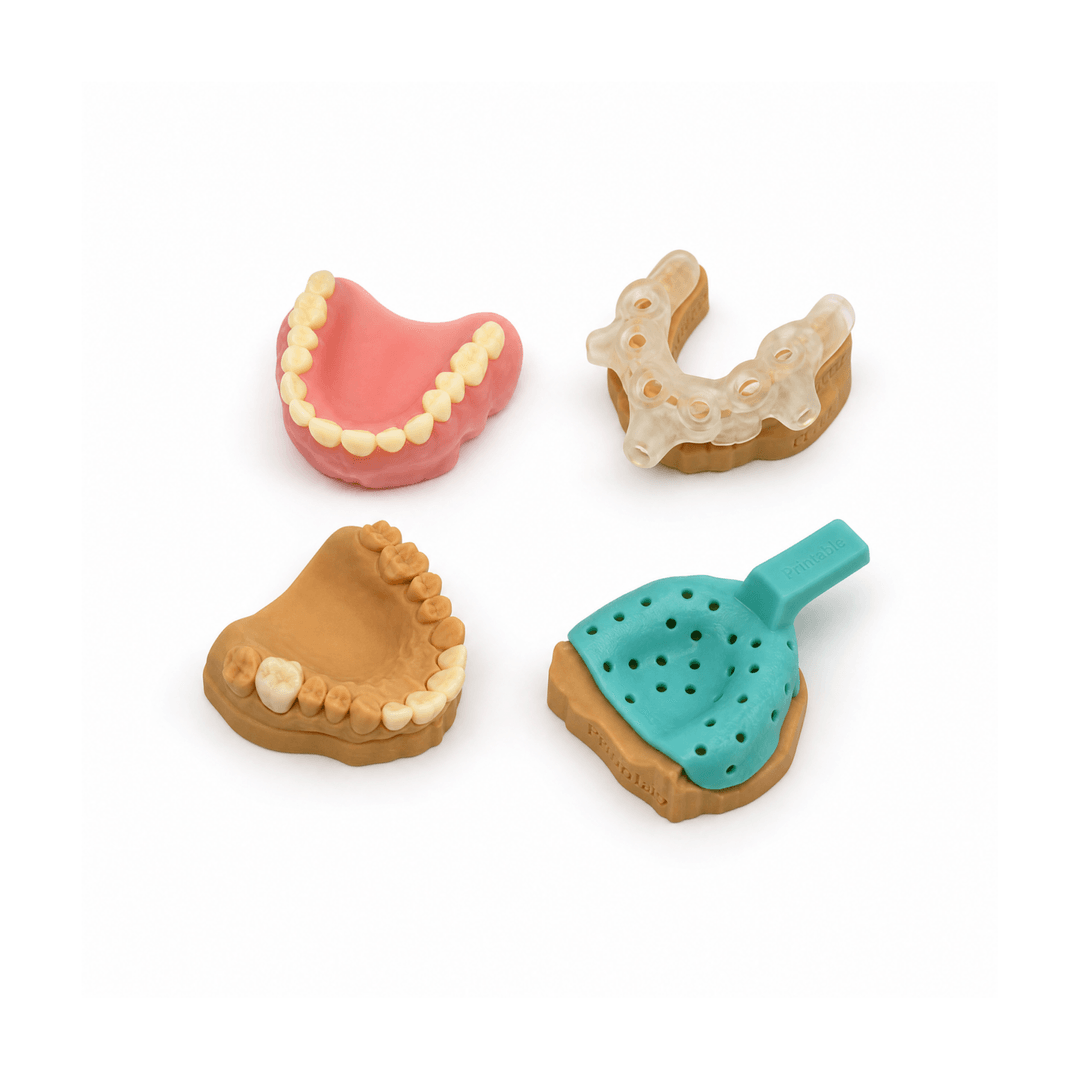

| Main Applications | Fixed restoration, implant, removable, orthodontics |
| Machine Dimensions | 910mm × 850mm / 1110mm (with collection box) × 1770mm |
| Weight | 309kg |
| Material | Photopolymer resin |
| Input File Format | STL, SLC |
Applications
Discover RP-400D
Talk to our team about pricing, samples, and how the RP-400D fits your dental workflow.
