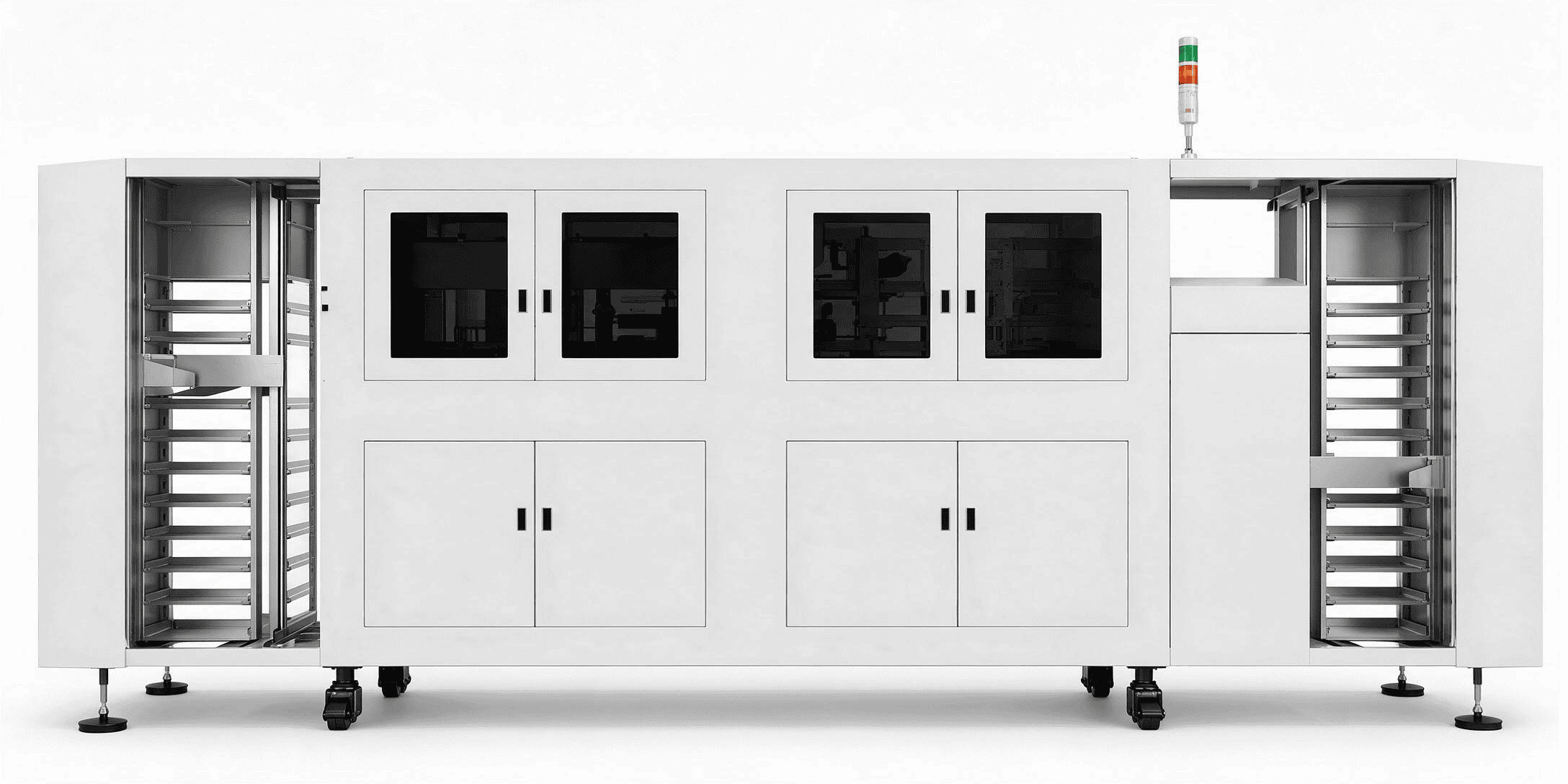

PL-A07 Dental 3D Post Processing
Alcohol‑Free Automatic Post‑Processing Line
Fully automated loading, rough wash, fine wash, water rinse, air drying, UV curing and unloading in a single machine
Alcohol‑free cleaning fluid
Multi-printer production compatibility
- Throughput
- 8 trays/h
- Footprint
- 3.8 m²
- Processes
- 7 in 1
- Printers Served
- 20 units
Overview
A Fully Timed, Fully Automatic Cycle
Every stage of the PL-A07 is precisely choreographed. Each wash stage follows a fixed rhythm — 1 minute loading, 4.5 minutes washing and 1.5 minutes draining — while new trays enter the line continuously for uninterrupted production.
Circulating-Pump Rough Wash
Loading 1 min · Washing 4.5 min · Draining 1.5 min
Circulating-Pump Fine Wash
Loading 1 min · Washing 4.5 min · Draining 1.5 min
Ultrasonic Water Rinse
Loading 1 min · Washing 4.5 min · Draining 1.5 min
High-Speed Air Drying
Rapid, uniform drying with a high-speed blower
UV Light Curing
From entering to leaving the uniform curing zone
Outlet Blow-Dry & Unloading
Final blow-dry before automatic unloading
Workflow
From Printed Model to Finished Part — in Seven Steps
Follow a tray of dental models through the PL-A07, from smart collection to final quality inspection.

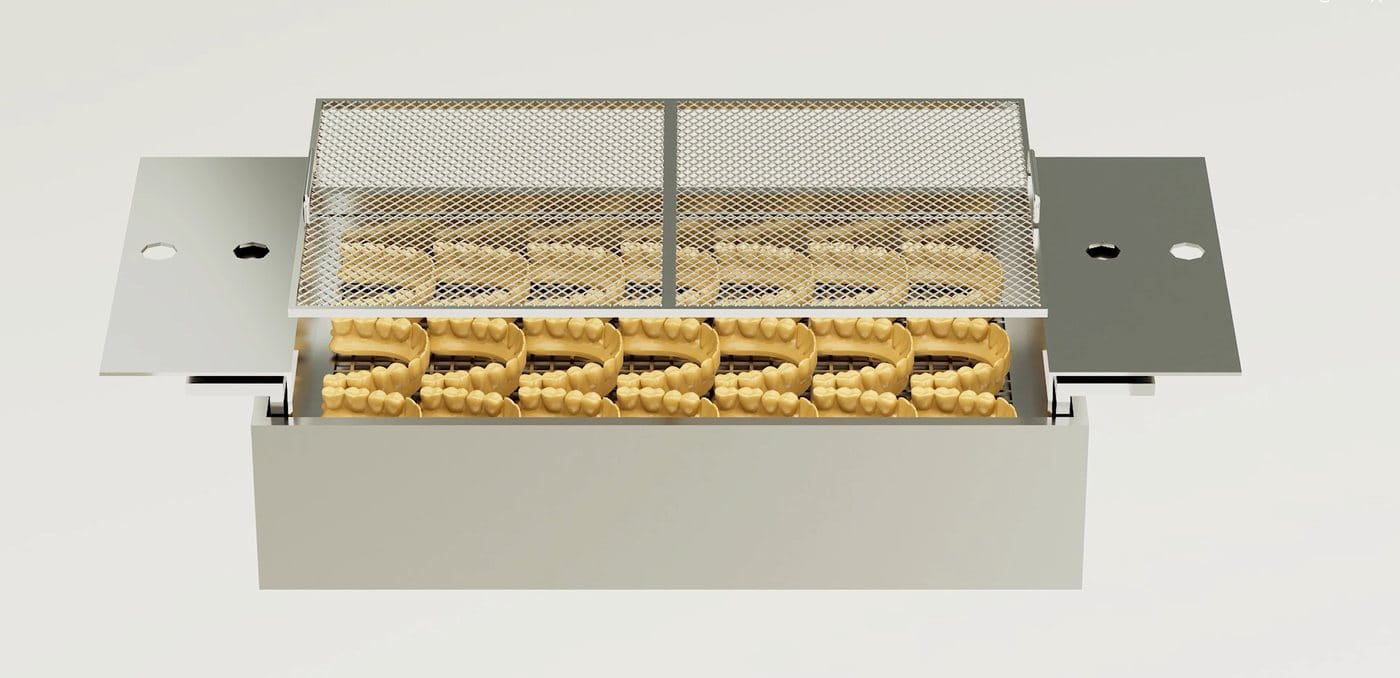

Smart Collection & Securing
Freshly printed dental models are collected into the collection basket. A safety mesh cover keeps every model firmly in place, preventing the water flow from washing models out of the tray during cleaning.

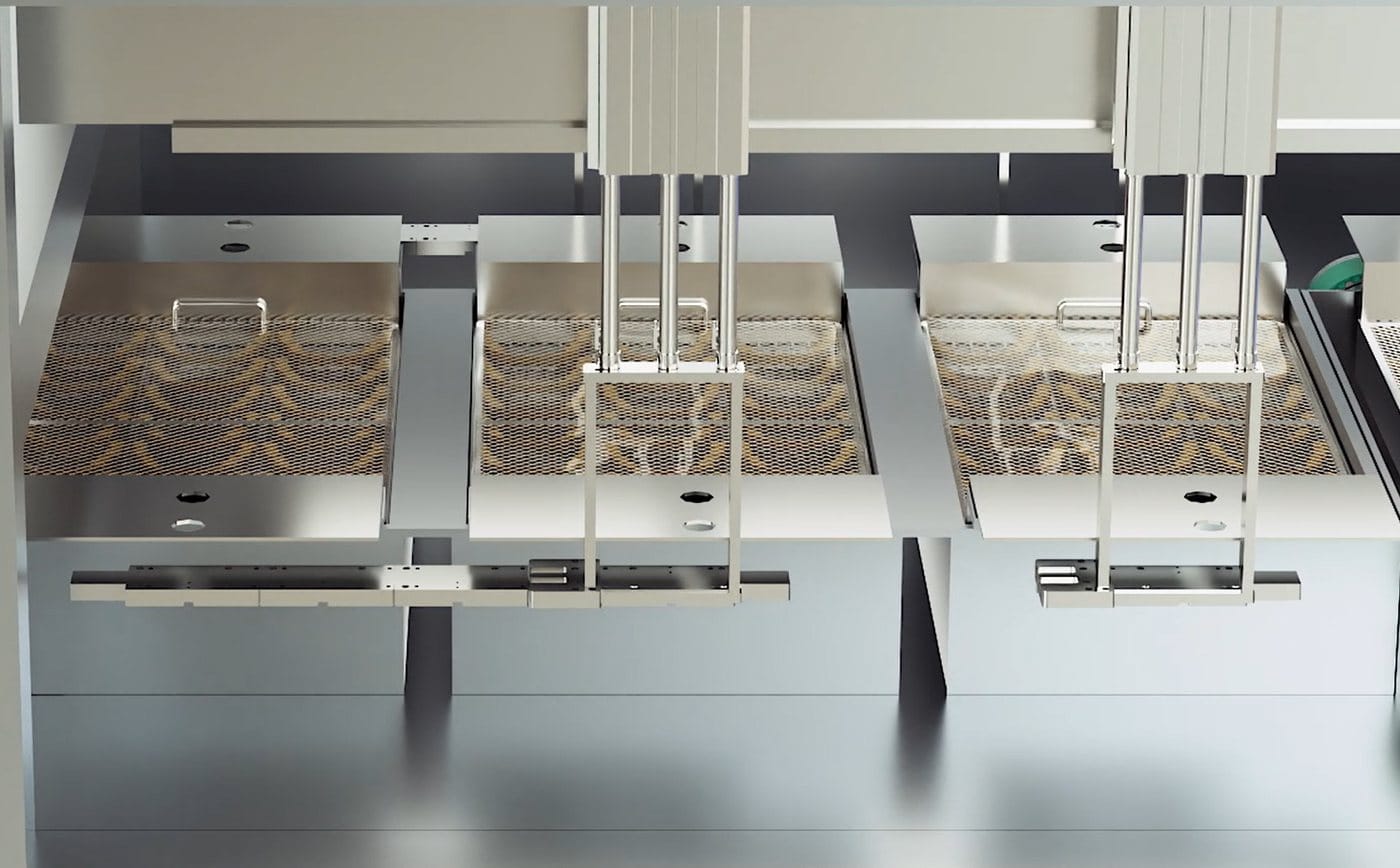

Automated Rough Wash
The intelligent transfer system lowers the basket into the first post-processing tank, where the detergent rough wash begins — laying a solid foundation for thoroughly cleaned models.

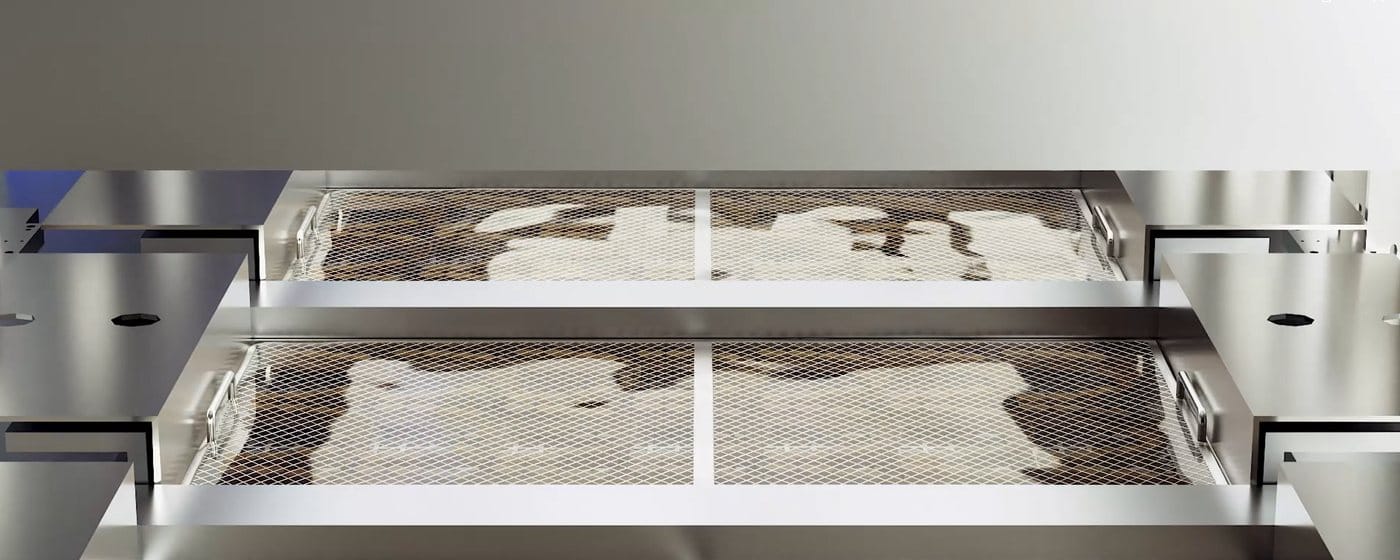

Automated Fine Wash
Models move from the first tank into the second for a 5-minute ultrasonic fine wash that leaves every detail spotless. Meanwhile, newly printed models enter the rough-wash stage in parallel, keeping the line in continuous motion.

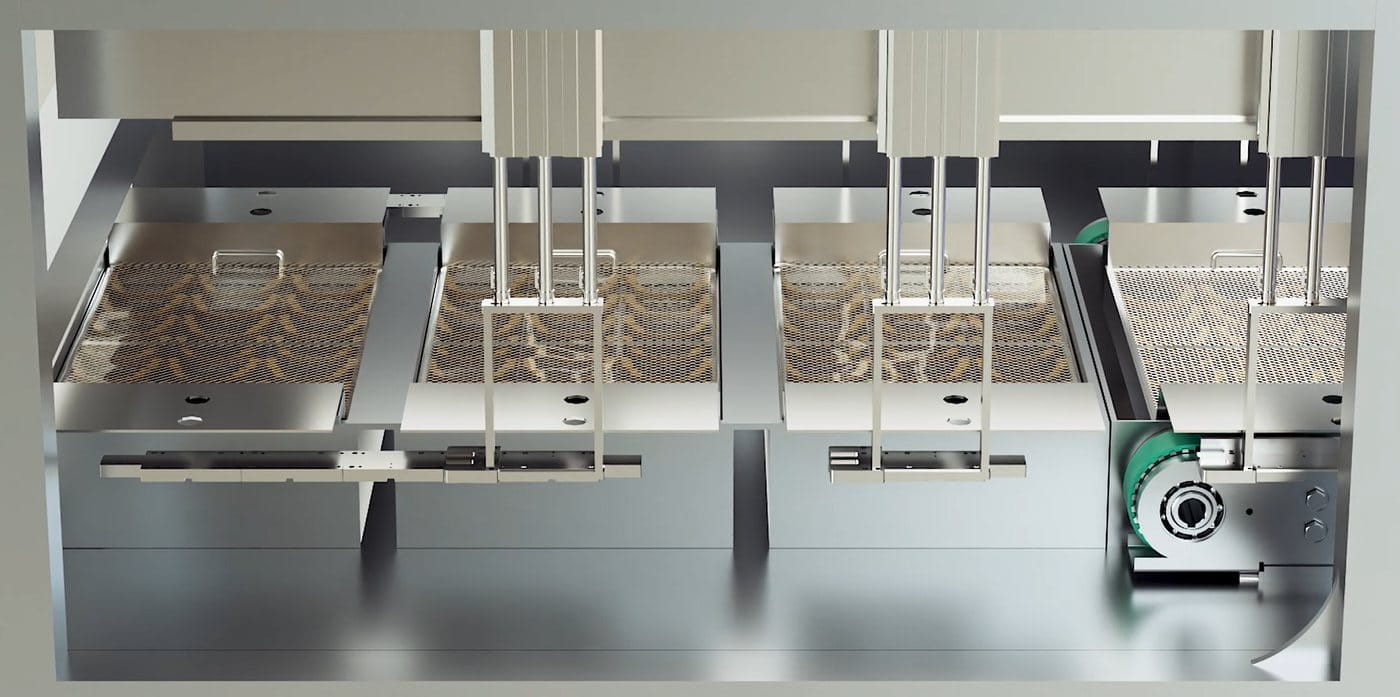

Deep Water Rinse
Fine-washed models automatically enter the third tank for a 5-minute ultrasonic deep water rinse, removing any remaining residue and preparing the models perfectly for drying and curing.

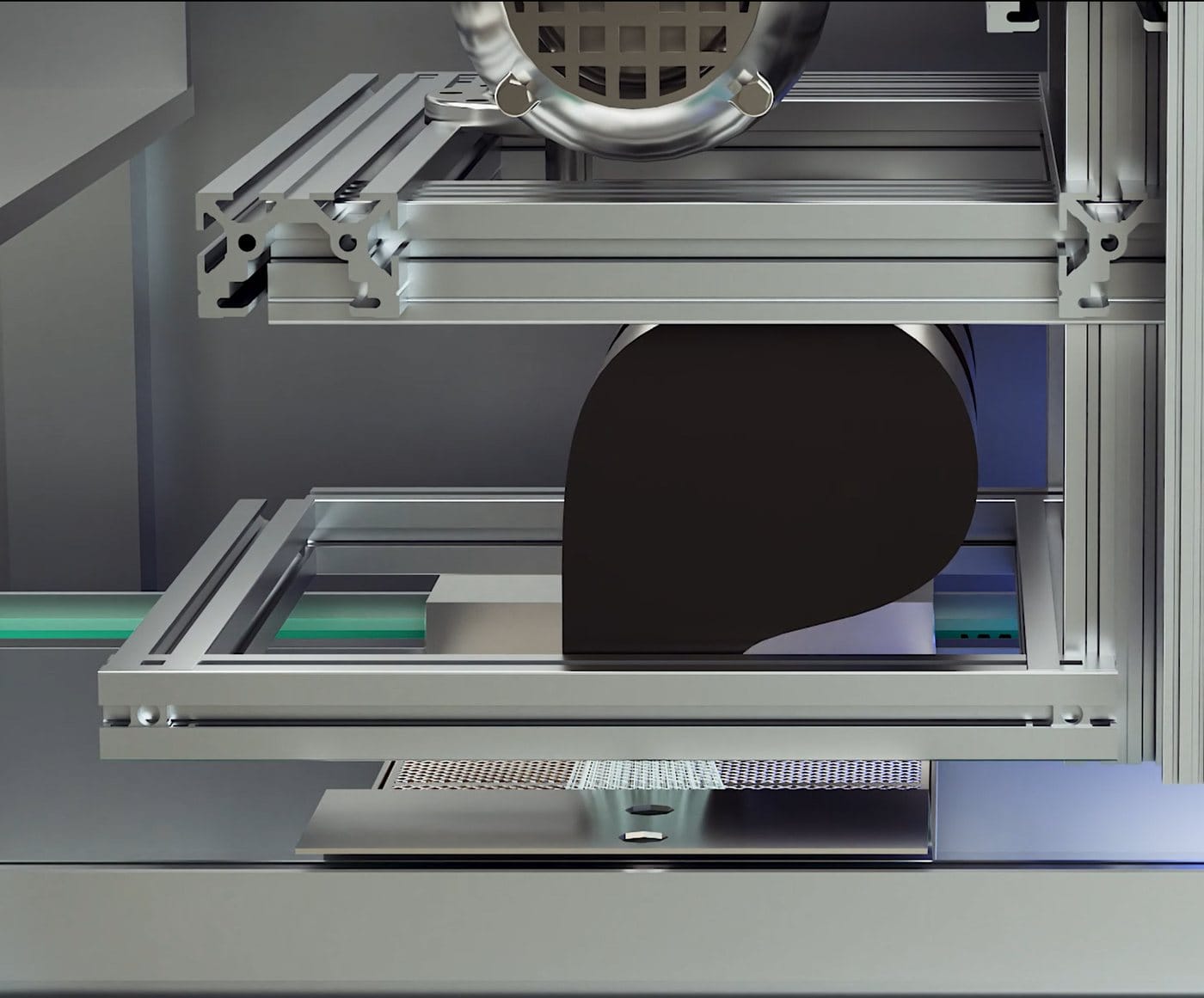

High-Speed Air Drying
After washing, the models are transferred to the air-drying zone, where 10 minutes of high-speed airflow dries them quickly and evenly — creating the ideal conditions for light curing.

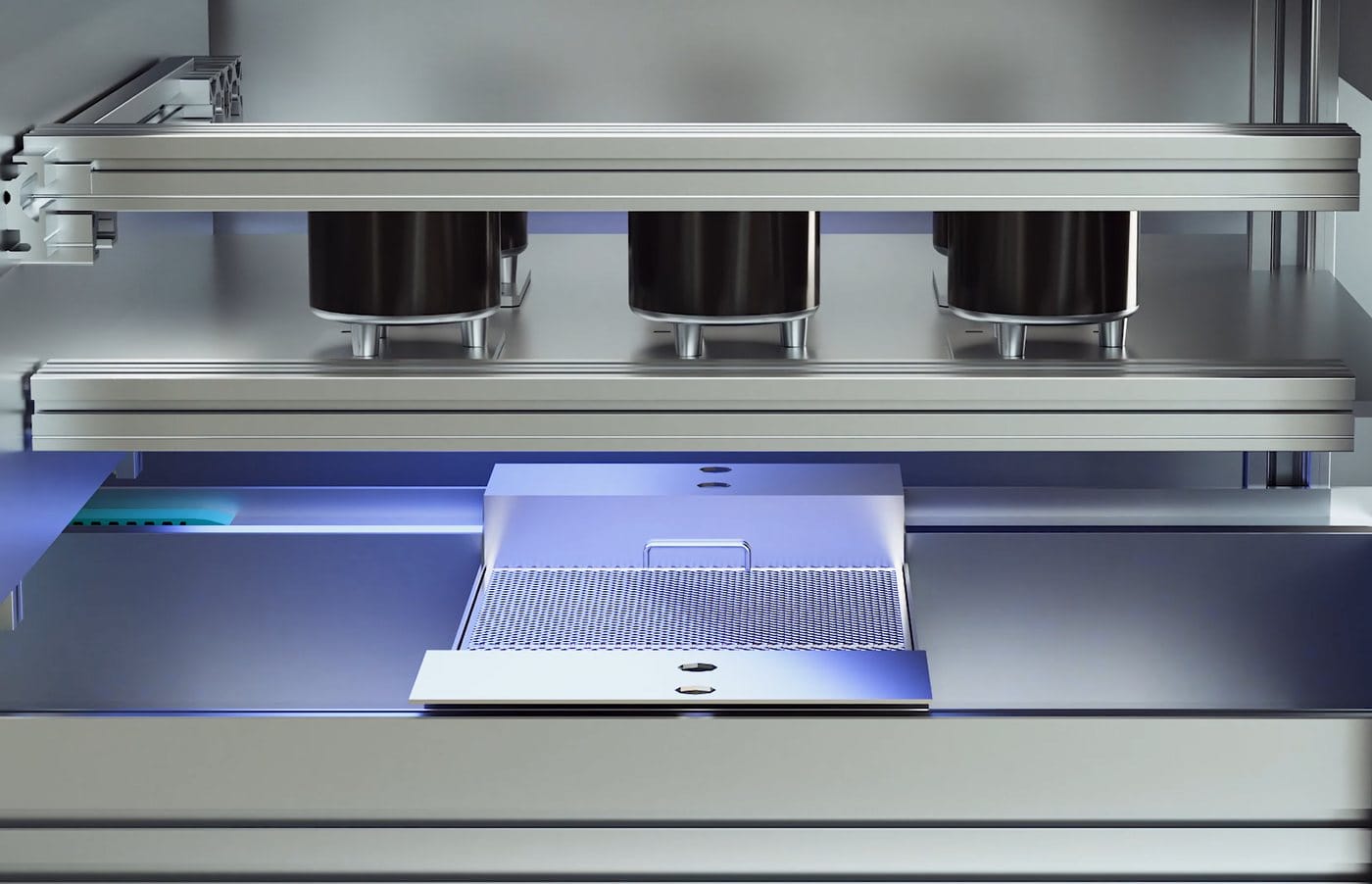

UV Light Curing
Once dried, the models enter the curing zone and receive uniform UV exposure from every angle, ensuring the strength and durability of each finished model.

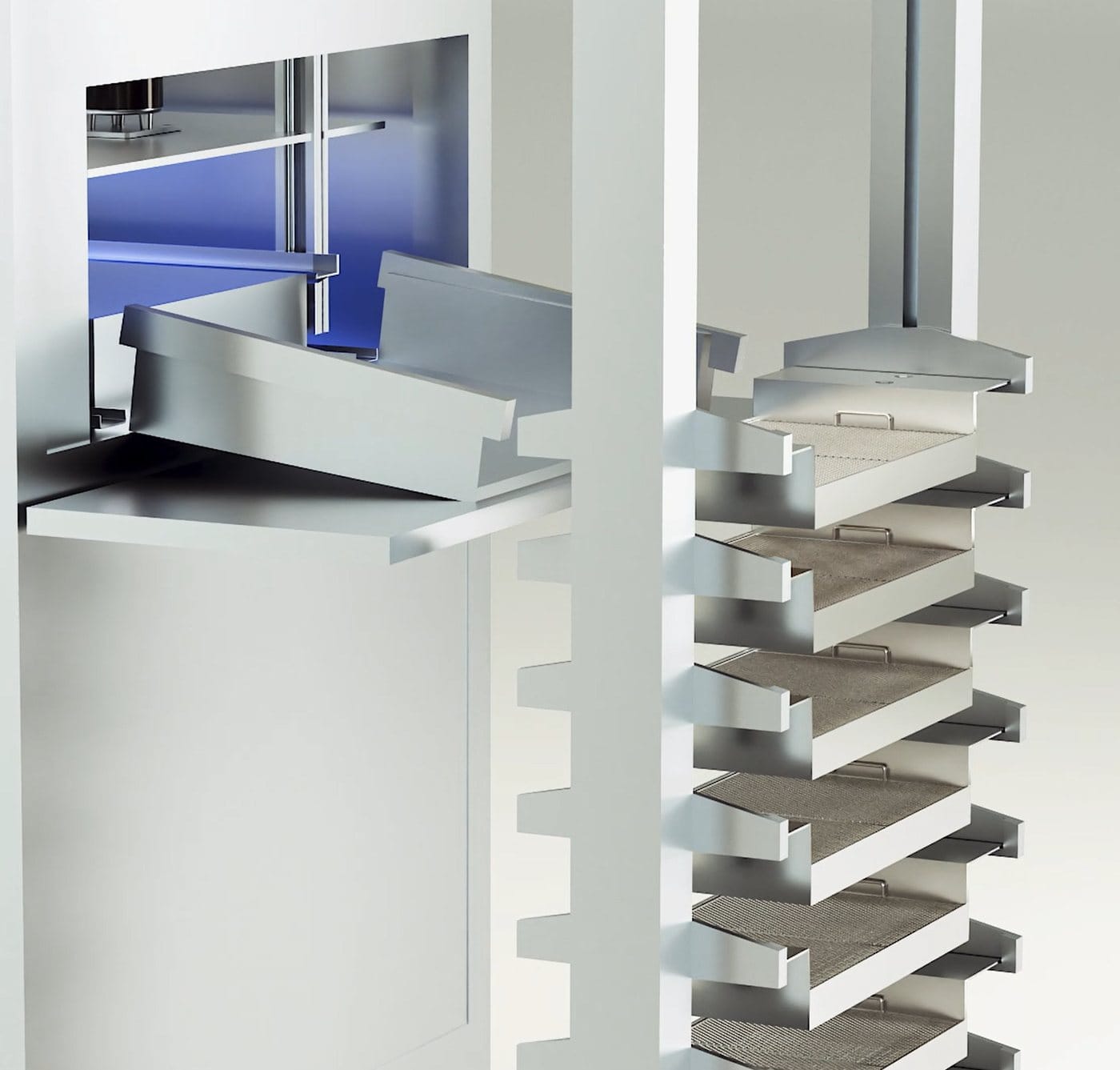

Completion & Manual Transfer
After curing, the models are automatically transferred to the completion zone, where specialists carry out the final quality inspection and manual transfer — ensuring every product meets the highest standard.
Product Parameters
Technical Specifications
| Series | PL-A07 |
|---|---|
| Machine Dimensions | 4050 × 930 × 1800 mm |
| Processing Capacity | 15 half-arch models per tray |
| Throughput | 8 trays / hour |
| Wash Tanks | 2 detergent tanks + 1 water tank |
| Tank Volume | Detergent tank 35 L · Water tank 20 L |
| Operating Temperature | 10 °C – 30 °C |
| Noise Level | ≤ 81 dB(m) |
| Power Supply | 220 V |
| Current | 30 A |
| Total Power | 6.6 kW |
Product Benefits
Engineered for Industrial Dental Production
Highly Modular
-
All-in-One Solution
Seven processes — automatic loading, rough wash, fine wash, water rinse, air drying, curing and automatic unloading — integrated into a single machine that streamlines your production.
-
Compact & Efficient
Designed for industrial customers with a compact, highly integrated structure and a footprint of just 3.8 m² — enabling high-density, flexible factory layouts and significantly higher production efficiency.
Safe & Eco-Friendly
-
Alcohol-Free Cleaning Solution
Combined with ultrasonic cleaning technology, it reaches every corner of the model while providing a safer working environment for your team.
-
Green Production
Eco-friendly materials and cleaning technology reduce environmental impact across the entire post-processing workflow.
Efficient & Stable
-
Multi-Printer Compatibility
One PL-A07 handles the output of up to 20 client printers (RP400), enabling uninterrupted operation and greater production continuity.
-
Smooth Conveying Design
An intelligent control system precisely manages every step, ensuring stability and consistency of each model throughout post-processing.
Applications
Built for Dental Manufacturing
Implant Restoration
High-volume, consistent post-processing for implant models and restorative applications — clean, cured and ready for the next step of your digital workflow.
Orthodontics
Continuous, unattended processing of orthodontic models and aligner molds, keeping pace with the daily output of large-scale clear-aligner production.
Ready to Automate Your Post-Processing?
Talk to our team about how the PL-A07 can connect with your printers and scale your dental production line.
