Dental Series · Photopolymer Resin
Dental Water-washableResin
RP-405-TW01W
- RP-405-TW01W is a water-washable resin that only requires rinsing with water to remove excess resin from the surface.
- Elongation at break of 14–15% with high impact strength — tough, durable printed parts.
Material Features
Rinse with Water Only
RP-405-TW01W is a water-washable resin that only requires rinsing with water to remove excess resin from the surface — no alcohol baths, no solvent handling, and a safer, lower-cost post-processing workflow.
High Toughness & Elongation
Elongation at break of 14–15% and notched impact strength of 34–52 J/m give printed parts excellent flexibility and impact resistance — models withstand handling, film pressing and daily use without cracking.
Low Viscosity, Smooth Layers
A viscosity of only 90 ± 50 cps at 25 °C lets the resin flow and recoat quickly, forming smooth, even layers that reproduce crisp occlusal detail on every print.
Test Data
| No. | Test Item | Unit | Test Standard | Performance |
|---|---|---|---|---|
| 1 | Mechanical Properties | |||
| 1.1 | Tensile Strength | MPa | ASTM:D638-14 | 48–65 |
| 1.2 | Elongation at Break | % | ASTM:D638-14 | 14–15 |
| 1.3 | Hardness | Shore D | ASTM:D2240-05 | 84 |
| 1.4 | Flexural Strength | MPa | ASTM:D790-10 | 65–87 |
| 1.5 | Notched Impact Strength | J/m | ASTM:D256-10 | 34–52 |
| 2 | Liquid Properties | |||
| 2.1 | Viscosity @ 25 °C | cps | ASTM:D4212-93 | 90±50 |
| 2.2 | Density @ 25 °C | g/cm³ | ASTM:D1475-98 | 1.105±0.1 |
| 2.3 | Color | / | Visual Inspection | White |
| 2.4 | Shrinkage Rate | % | ASTM:D638-14 | 6.8 |
Applications

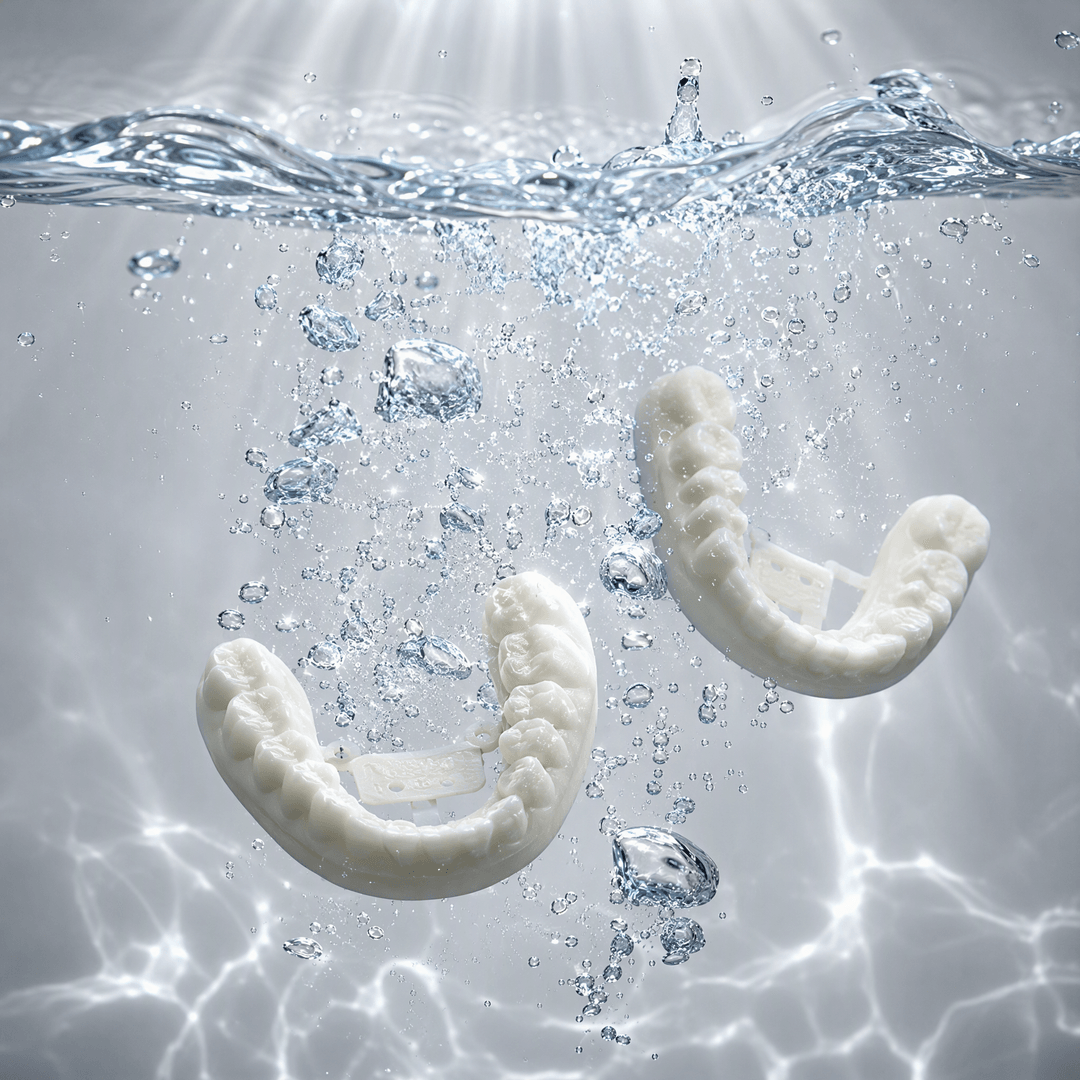

Orthodontic Dental Models
High-precision orthodontic models printed with RP-405-TW01W water-washable resin. After printing, a simple water rinse removes excess resin from the surface — no alcohol or solvents — leaving clean, smooth models ready for aligner manufacturing, treatment simulation and appliance design.
- Water rinse removes excess resin — no alcohol or solvents needed
- High elongation and impact resistance for durable working models
- Crisp occlusal detail for accurate aligner fitting
