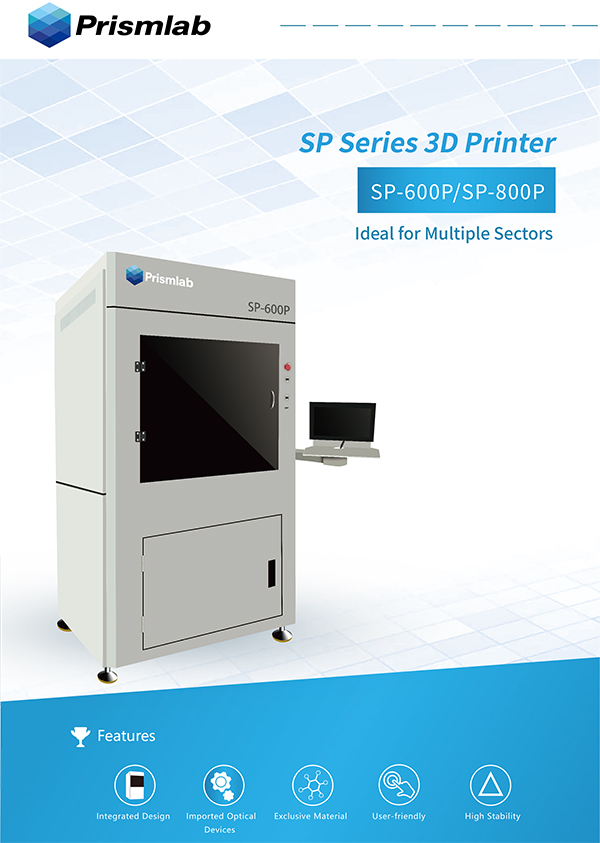

Excellent quality Microneedle 3d Printing - SP Series SP-600P01X brand high-accuracy SMS 3D Printer – Prismlab
Excellent quality Microneedle 3d Printing - SP Series SP-600P01X brand high-accuracy SMS 3D Printer – Prismlab Detail:
Application of SMS 3D printing technology in mold design and manufacturing:
● Break the shackles of mold as the mother of industry. Through 3D printing, mold free manufacturing can be realized, especially in the aspects of new product research and development, personalized customization, small batch production, complex special-shaped structure products, and non splicing integrated molding and manufacturing. 3D printing can replace the traditional mold manufacturing method and profoundly change the mold industry.
● Direct 3D printing of molds or mold parts that can be used for production. For example, injection molds, stretching molds, die-casting molds, etc. can also be used for mold repair.

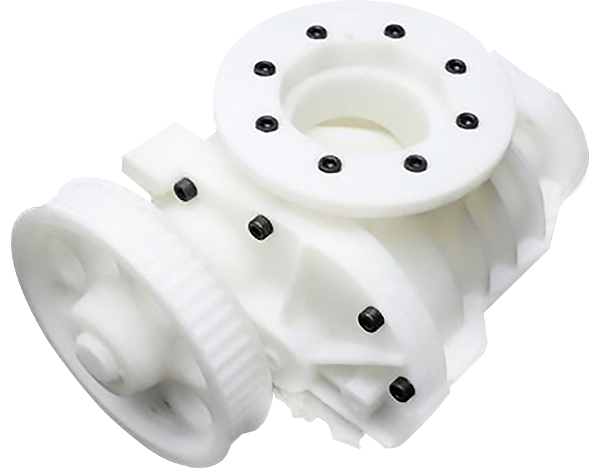

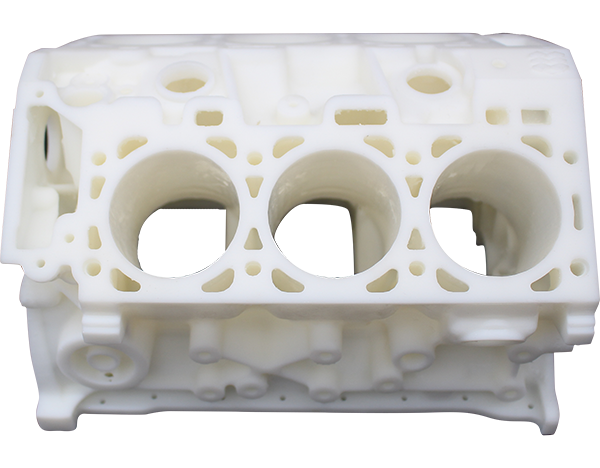

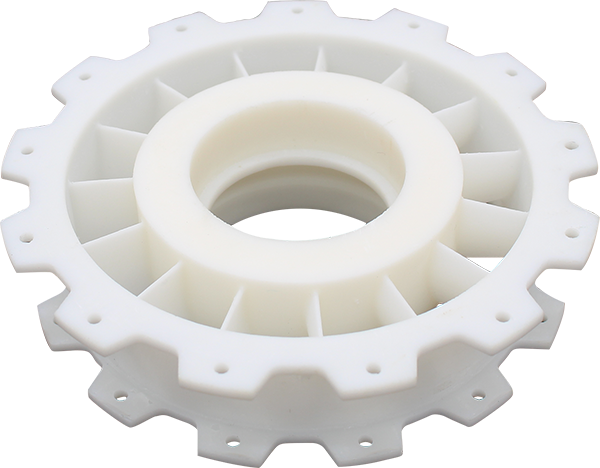

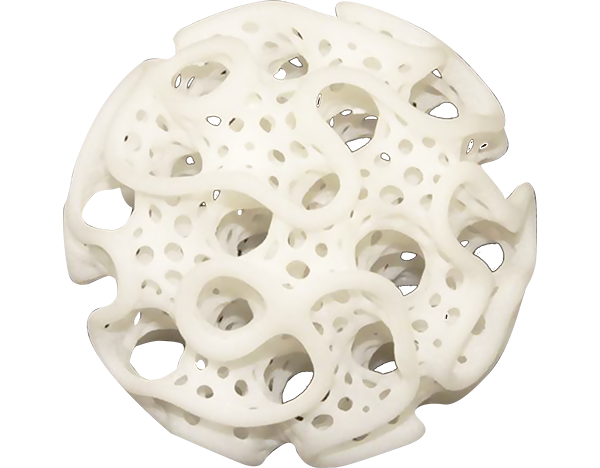

Application
Parameters
| Product Name | SP-600P | SP-800P |
| Laser Type | Diode-pumped Solid-state Laser | Diode-pumped Solid-state Laser |
| Wavelength | 355nm | 355nm |
| Laser Power | 3W | 3W |
| Recoating Mode | Intelligent Vacuum Absorptive Scraper | Intelligent Vacuum Absorptive Scraper |
| Normal Build Thickness | 0.1mm | 0.1mm |
| Accuracy | <100mm； ±0.1mm , >100mm；l/1000mmXWorkpiece length | <100mm； ±0.1mm , >100mm；l/1000mmXWorkpiecelength |
| Benchmark Platform | Marble | Marble |
| Precise Build Thickness | 0.05~0.lmm | 0.05-0.1mm |
| Beam Size | 0.1-0.8mm (adjustable) | 0.1-0.8mm (adjustable) |
| Scan Speed | 6-12m/s | 6~12m/s |
| Build Rate | 50-200g/h | 50-200g/h |
| Benchmark Platform | XYZ Integrated Marble Platform | XYZ Integrated Marble Platform |
| Position Repeatability | ±0.01mm | ±0.01mm |
| Main Application | Orthodontics, Aerospace, Art & Design, Architecture, Automobile Accessory, Ed ucation | Orthodontics, Aerospace, Art & Design, Architecture, Automobile Accessory, Education |
| Pre-processing Software | Materialise Magics RP (optional) | Materialise Magics RP (optional) |
| Input File Format | STL | STL |
| Power Requirement | 200-240VAC 50/60HZ, Single phase, lOAmps | 200-240VAC 50/60HZ, Single phase, 10Amps |
| Ambient Temp | 20-26°C | 20-26°C |
| Relative Humidity | Less than 40%, Non-condensing | Less than 40%, Non-condensing |
| Device Dimension | 1.3m X 1.1m X 1.95m | 1.5m X 1.3m X 2.35m |
| Weight | 700kg | 1000kg |
| Max Build Volume | 600mmX600mmX400mm (customizable) | 800mm X 800mm X 400mm (customizable) |
Product detail pictures:
