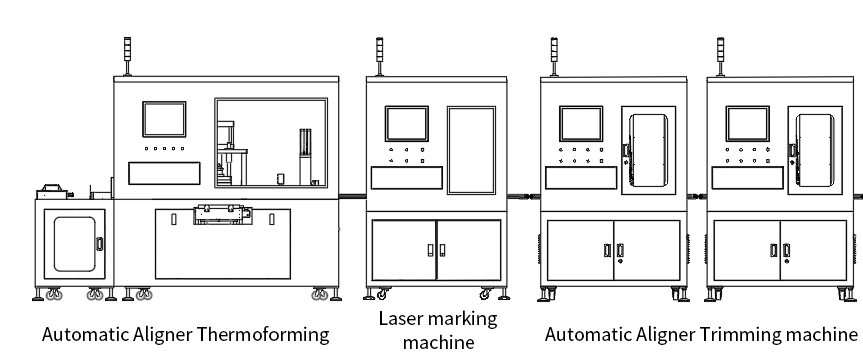

Automatic assembly production line of making clear aligners

3.Technical Parameters of Automatic Aligner Thermoformingmachine

1) Controllable forming temperature range: 150℃ -400℃s, the foil was heated evenly
2) Heating efficiency: 3) Controllable forming pressure range: 1-10 Bar
4) Working efficiency of forming (single time to complete forming) : ≤15 seconds
5) Excellent in compactness
6) Defective rate of forming (rework rate) : <1%

7) With the model character identification function

4.Main operating technical parameters of Laser machine

1) Visual recognition rate > 99%
2) Visual recognition time ≤0.2 seconds
3) Recognition rate of laser marking QR code > 99.9%
4) Laser single coding time < 2 seconds
5) The defective rate of laser coding is close to 0

5.Technical Parameters of Automatic Aligner Trimming Machine

1) The edge of the clear aligner after trimming is consistent with the original trimming line, and the accuracy is <0.3mm
2) Operation time of trimming a single clear aligner: 3) No interference in the trimming process
4) After trimming, the edge burr rate of clear aligner is less than 2%
5) Bad trimming (rework) rate: <1%
6) Provide supporting tools and software to solve the automatic generation of trimming lines and manual correction functions;
7) Provide supporting tools and software to solve the function of base shape generation for trimming and positioning;
8) Provide API interface, solve the custom trimming line path, tool Angle setting function;
