ACTA-E Automatic Clear Aligner Trimming Machine

Short Description:

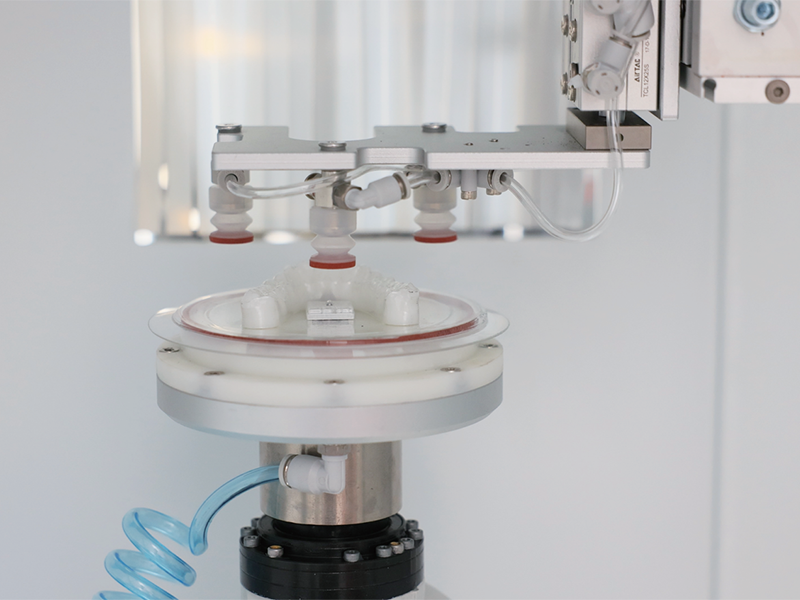

The Prismlab Invisible Orthodontic 4-in-1 Trimming Machine perfectly integrates seven key processes, including automatic feeding, automatic gripping of dental models, automatic gripping of dental sheets, automatic thermofoming, automatic marking, automatic trimming and automatic collection.


Product Detail

Product Tags

Description

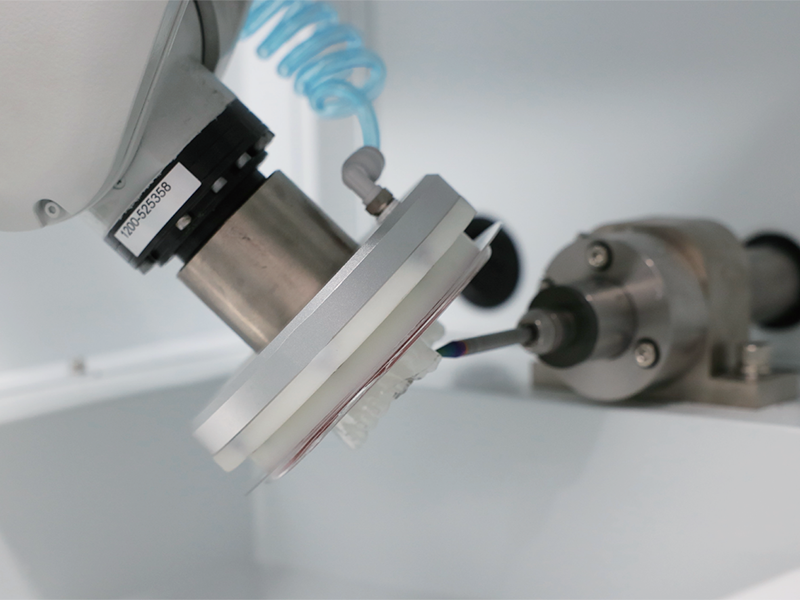

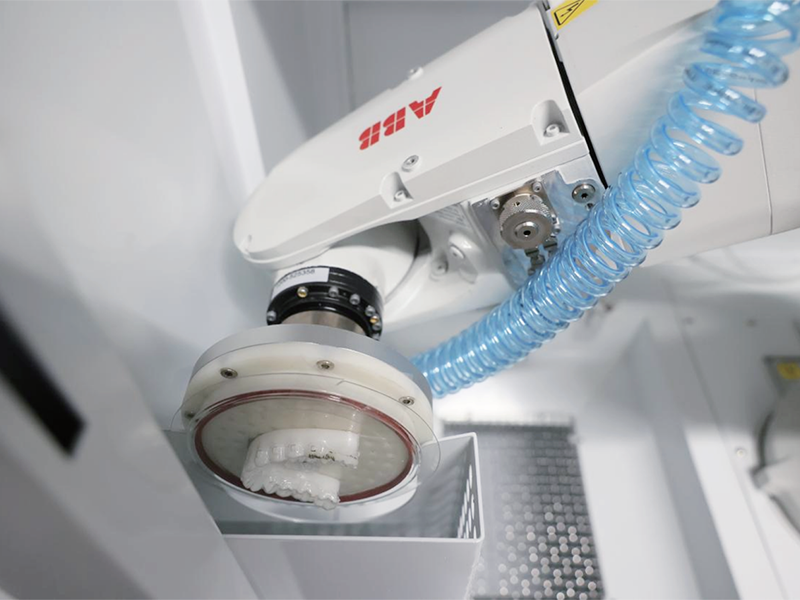

Prismlab ACTA-E Automatic Clear Aligner Trimming Machine can realize 24-hour uninterrupted operation, and can produce 500+ standard dental pulp every day. Automatic intelligent robot operation can realize automatic grabbing, automatic precise cutting and automatic replacement. Each dental membrane cutting takes less than 40 seconds, and there is no need for human intervention in the middle. The assembly line production can truly realize automatic work.

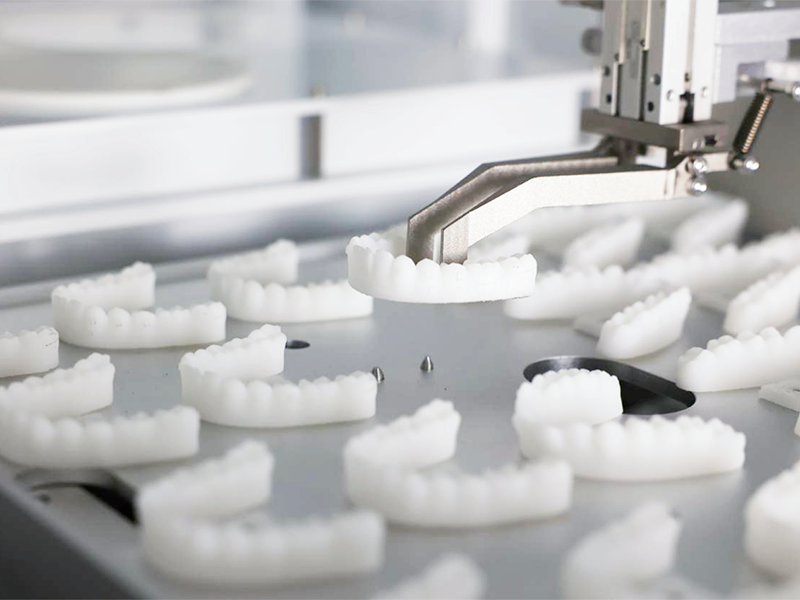

The equipment is equipped with a dedicated model
and dental sheet storage bin to realize automatic access to dental models and dental sheets.

Features

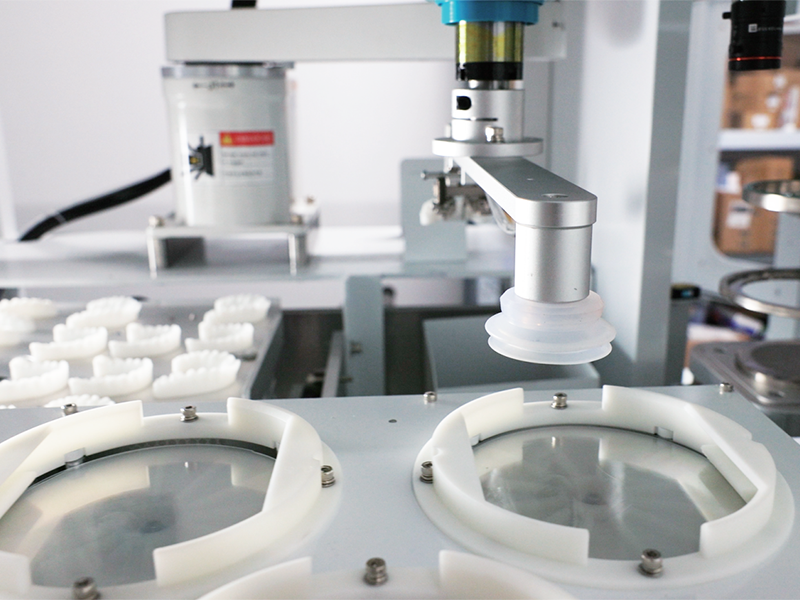

1.Automatic Material Storage and Feeding
2.Full Process in Automatic Production
3.Automatic Discharge System

Application

Prismlab ACTA-E Automatic Clear Aligner Trimming Machine is suitable for various oral medical institutions and dental laboratories,
especially for occasions where large-scale production of clear aligner is required.


Parameters

Product Name  ACTA-E
Equipment size  2180*1480*1870 mm
Equipment weight  1.2 tons
Voltage  220V
Rated power  3KW
Maximum gas consumption  465L/min
Average gas consumption  160L/min
Working efficiency  100pcs/hour
Models/sheets for storage  300pcs per time
Compatible Sheets type  4 types,can up to hold 300pcs/type
